The JG D065 Pro is the upgraded version of our 6.5-inch combo beam LED driving light, the JG D065. The core change is a Dynamic Amber & White DRL with 7 animated modes, driven by a 3-button switch with smart memory. Output climbs from 16,600 to 22,880 lumens per pair, and 1-lux reach extends from 452 m to 517 m. The platform stays familiar: OSRAM P8 LEDs, combo beam, IP68 & IP69K sealing, and 10–32V DC input.
The D065 Pro is a focused refresh of a proven SKU, not a clean-sheet redesign. The 6.5-inch format, OSRAM P8 LED chips, combo driving beam, and IP68 & IP69K sealing all carry over, so it fits the same applications and listings you already run. Five things change — the DRL, the switch, the harness, the output, and the reach — driven by two trends: more buyers asking for dynamic DRL effects, and LED efficiency that pushes more light from the same footprint.
The original JG D065 set the foundation: die-cast aluminum housing with black powder coating, a screwless frame that keeps dust and moisture out, a pressure vent against condensation, and 3 mm stainless U-brackets with rubber dampeners. The Pro builds on that same platform with the dynamic layer on top.
Spec | JG D065 Pro | JG D065 |
|---|---|---|
Size | 6.5 in | 6.5 in |
LED chips | OSRAM P8 + dual-color LEDs | OSRAM P8 |
DRL system | Dynamic white + amber position light, 7 modes incl. scan & color chasing | Static dual-color (white & yellow), 2 states |
Control | 3-button switch + smart memory | Wire-triggered |
Harness & connector | Heavy-duty harness, waterproof 4-pin DT | 2-pin harness + DRL trigger wires |
Output | 22,880 lm per pair | 16,600 lm per pair |
1-lux distance | 517 m | 452 m |
Power draw | 130 W per pair | 120 W per pair |
Beam pattern | Combo (spot + flood) | Combo (spot + flood) |
Ingress protection | IP68 & IP69K | IP68 & IP69K |
Certification | Confirm with our team | E-Mark E9 (ECE) |
Same footprint, more light, and a DRL that actually moves. If you already list the JG D065, keep it as the value tier and position the Pro as the feature tier of your LED driving light range — same family, clearer step-up story.
About 38% brighter, from just 10 W more per pair. The D065 Pro delivers 22,880 lumens against the D065's 16,600, while drawing 130 W instead of 120 W — a meaningful jump for trucks and machinery with tight electrical budgets, without touching the charging system. The 10–32V DC input covers 12V pickups and 4x4s as well as 24V trucks and agricultural machinery, so one SKU serves mixed fleets.
Reach improves as well. The beam holds 1 lux — a common industry benchmark for usable throw distance — out to 517 m, 65 m further than the D065. For perspective: at 110 km/h, a driver needs about 17 seconds to cover that distance. The 6500K beam reads clean white, and the combo pattern pairs a spot light core for distance with flood spread for the road shoulders.

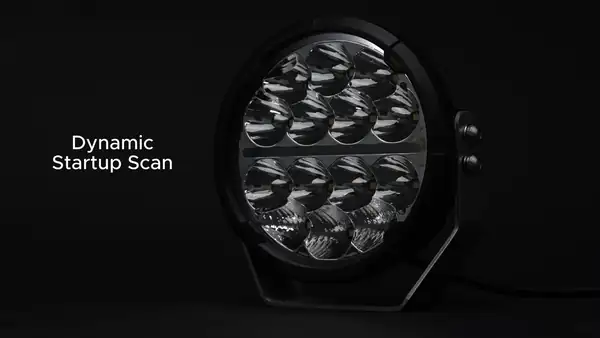

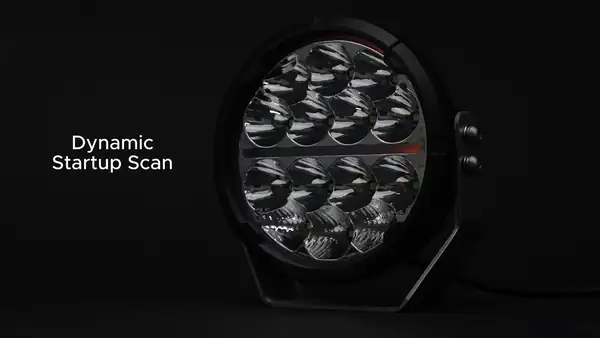

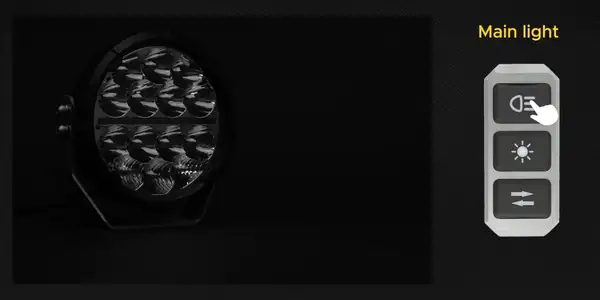

It is the headline upgrade. The D065's static white-and-yellow DRL becomes a dynamic system: 7 amber and white modes, including a startup scan and color chasing, selected from a 3-button switch on the harness. Smart memory stores the last used mode and restores it automatically on the next startup — no re-setting after every trip.
Wiring is simpler too. On the D065, installers ran a 2-pin harness for the main beam, a white wire for the white DRL, and a yellow wire for the amber function. The Pro consolidates all of it into one heavy-duty harness with a waterproof 4-pin DT connector. DT connectors are a common standard in off-road electrics, so field repairs and replacements stay plug-and-play.
Set a subtle mode for the daily commute, then switch to scan or chase for shows, meets, and convoy runs. For resellers, that flexibility demos well — dynamic patterns read instantly on video and at the counter. Building a larger multi-light setup? The Pro pairs naturally with our control panels.
Each region sets its own rules for auxiliary driving lights, so the paperwork depends on where you sell. In Europe, UN Regulation No. 149 (ECE R149) governs road illumination devices, and E-mark approval under that framework is what makes a driving light street-legal. The JG D065 carries E-Mark E9, approved by Spain under the ECE system.
For the D065 Pro, confirm the current homologation status for your market before listing it for road use — ask when you request samples. Australia works on a similar basis, as the Australian Design Rules (ADR) adopt ECE-style approvals for lighting. In the United States and Canada, SAE lighting standards are the usual reference, with road legality set at state and provincial level.
ECE-style approvals are also recognized in markets that follow the same system, including South Africa. And where a light is sold purely for off-road, farm, or site use — agricultural machinery, construction fleets — compliance pressure is lower and durability matters more. There, IP69K earns its keep: it covers the high-pressure, high-temperature washdowns farm equipment sees after a season in the mud.
The D065 Pro keeps what worked in the JG D065 and upgrades what customers notice first in an LED driving light: the DRL, the output, the reach, and the control experience. Sell the D065 as the value tier, the Pro as the feature tier, and let the comparison table above do the rest.
Request a sample pair or apply for a trial order. We'll send the full spec sheet, confirm certification status for your market, and walk through OEM options including custom branding and packaging. Tell us your market and target vehicles, and we'll match the right SKUs. Request a Sample / Apply for a Trial →
