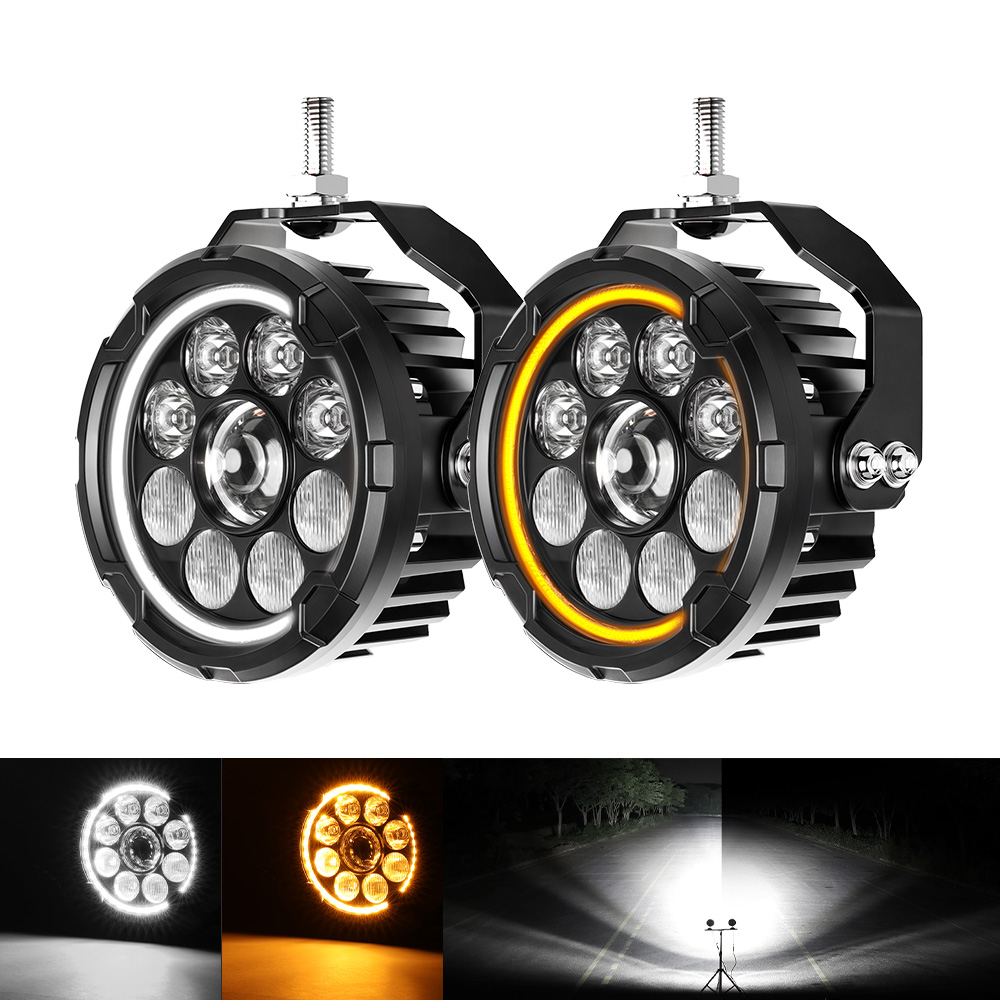

Upgraded Dual-Color DRL Motorcycle Light with 4-Level Control-D040-9-C-AWY

Share to:
sharethis sharing button
Model Number:D040-9-C-AWY
Size:4.5 inch
Lumen:15330LM/Pair
Power:110W /pair
Operating Voltage:9-32V DC
Beam:Version1: High Low Beam / Version2: Driving Beam Spot
Color Mode:White main light with 4-step dimming control + White & Amber DRL
Waterproof rate:IP68

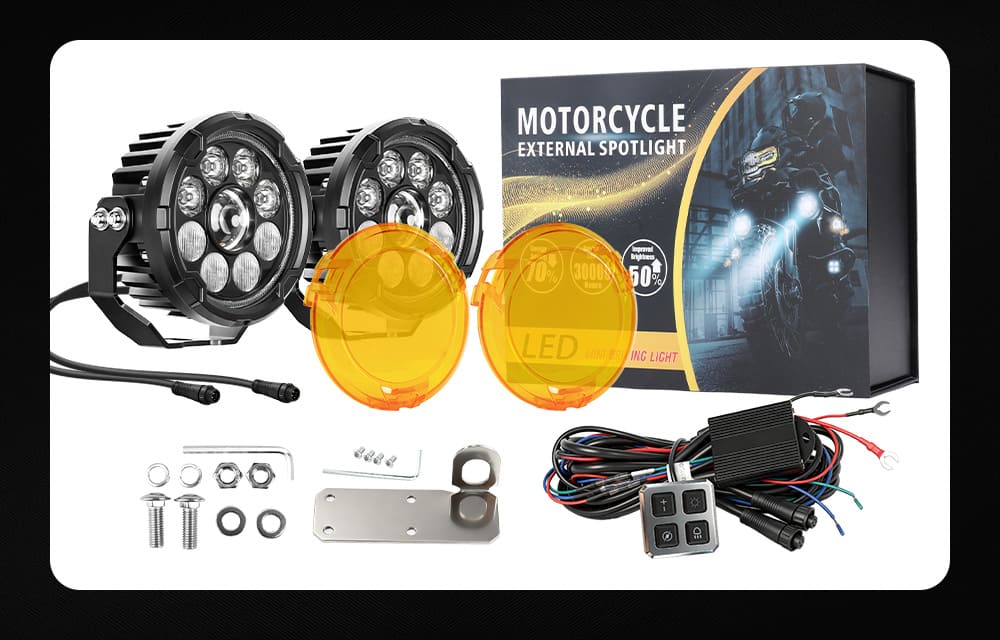

Include:Wire Harness+Switch
Service:Customized Logo Printing
Position:Bull Bar, Bumper, Grille, Lower, Upper
Lifespan:50000H+
Warranty:2 Years
Availability:

6

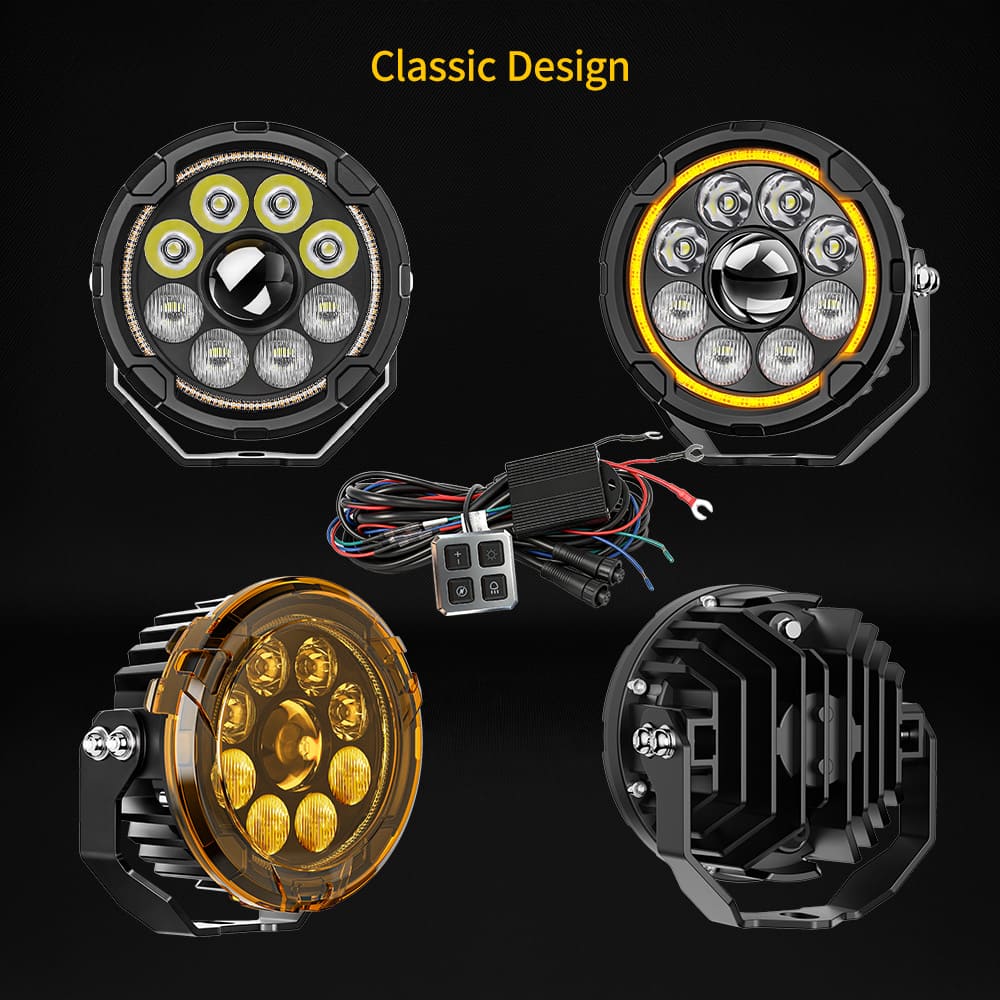

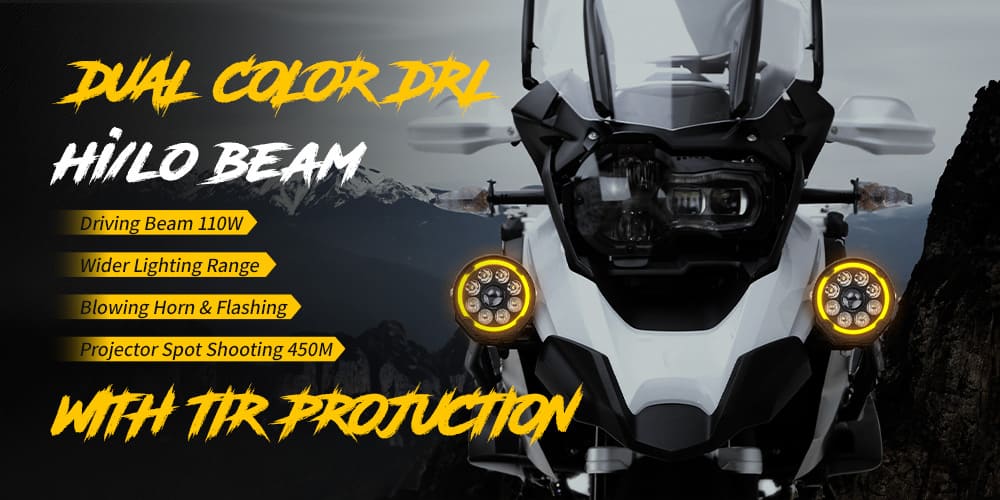

Key Upgrades for the New D040-9-C-AWY

Our latest D040-9-C is an enhanced version of the previous model—keeping all the proven strengths, while adding smarter visibility and more versatile control.

• Upgraded white/amber DRL for improved visibility

• New 4-level brightness control harness for flexible beam adjustment

Original performance retained: same wattage, brightness, and IP68 rating



7

8

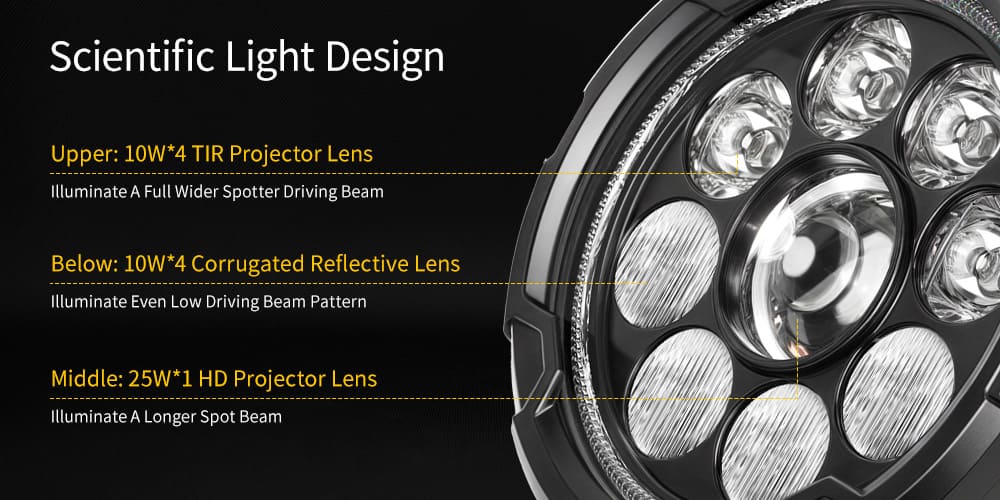

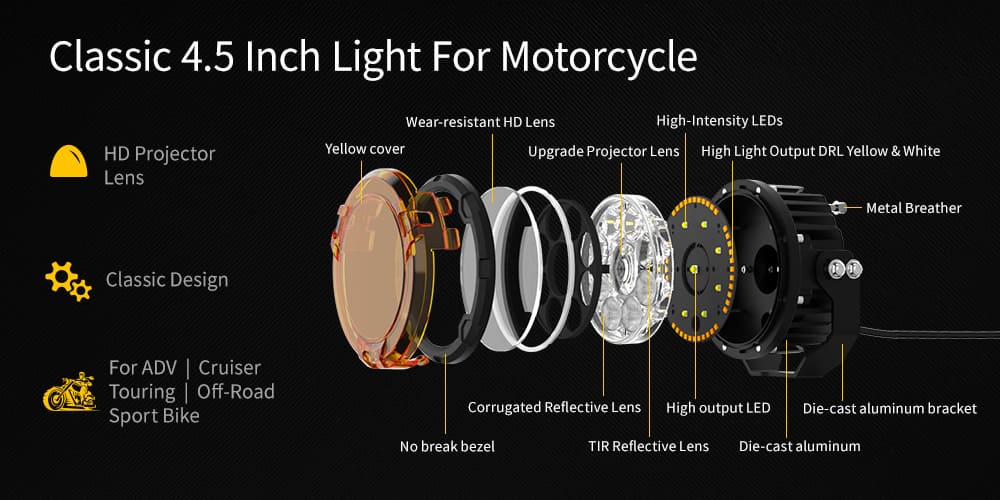

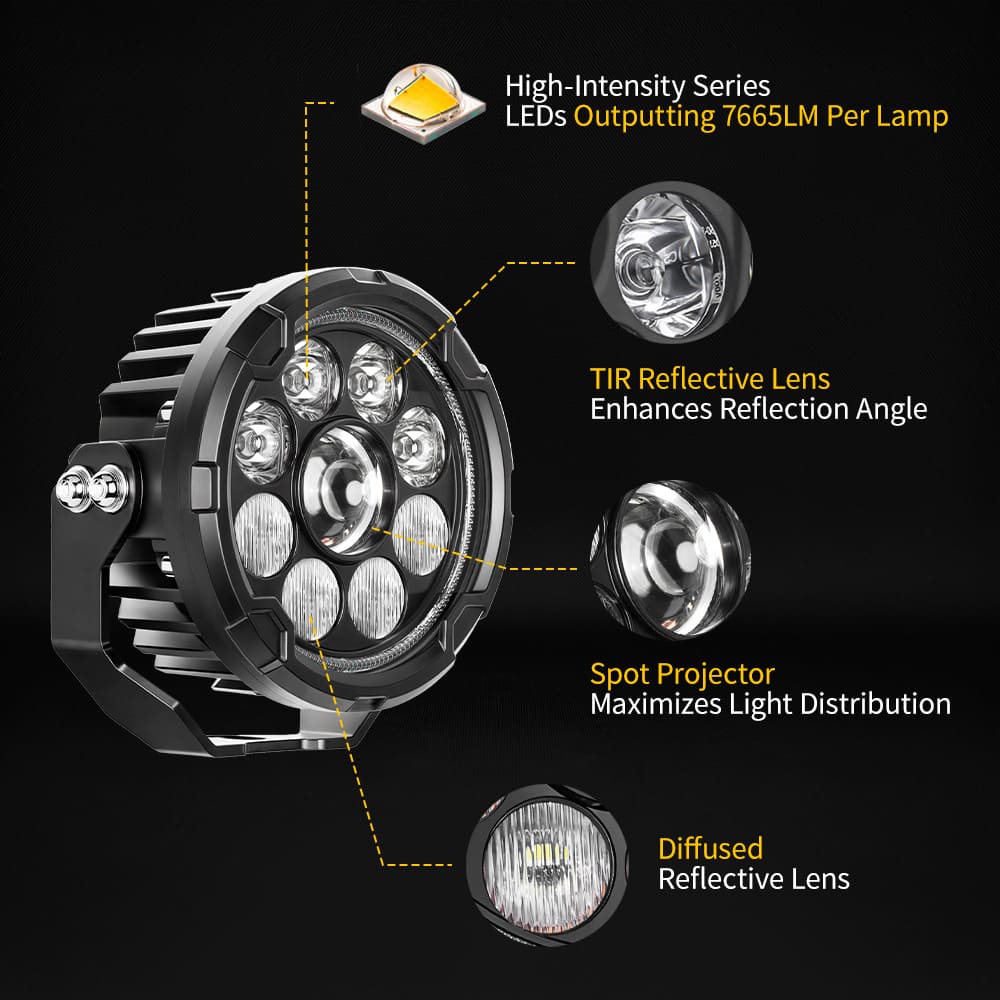

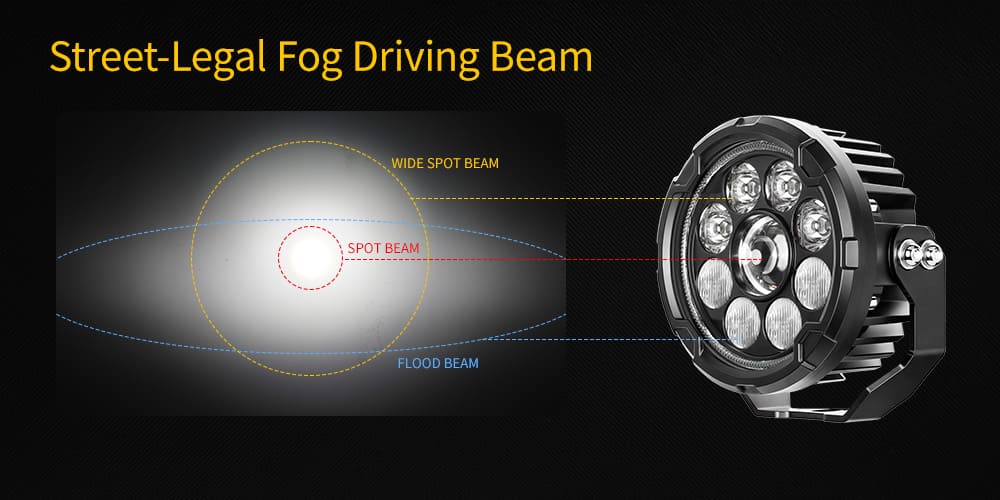

High-Performance Optical System

110W per pair of high-output LEDs provide powerful, consistent illumination

• Two optical structures working together

Low Beam (Spot)wide coverage with soft spread

High Beam (Spot)concentrated throw for long-distance visibility

TIR reflective lens improves light control and enhances beam angle



9

10

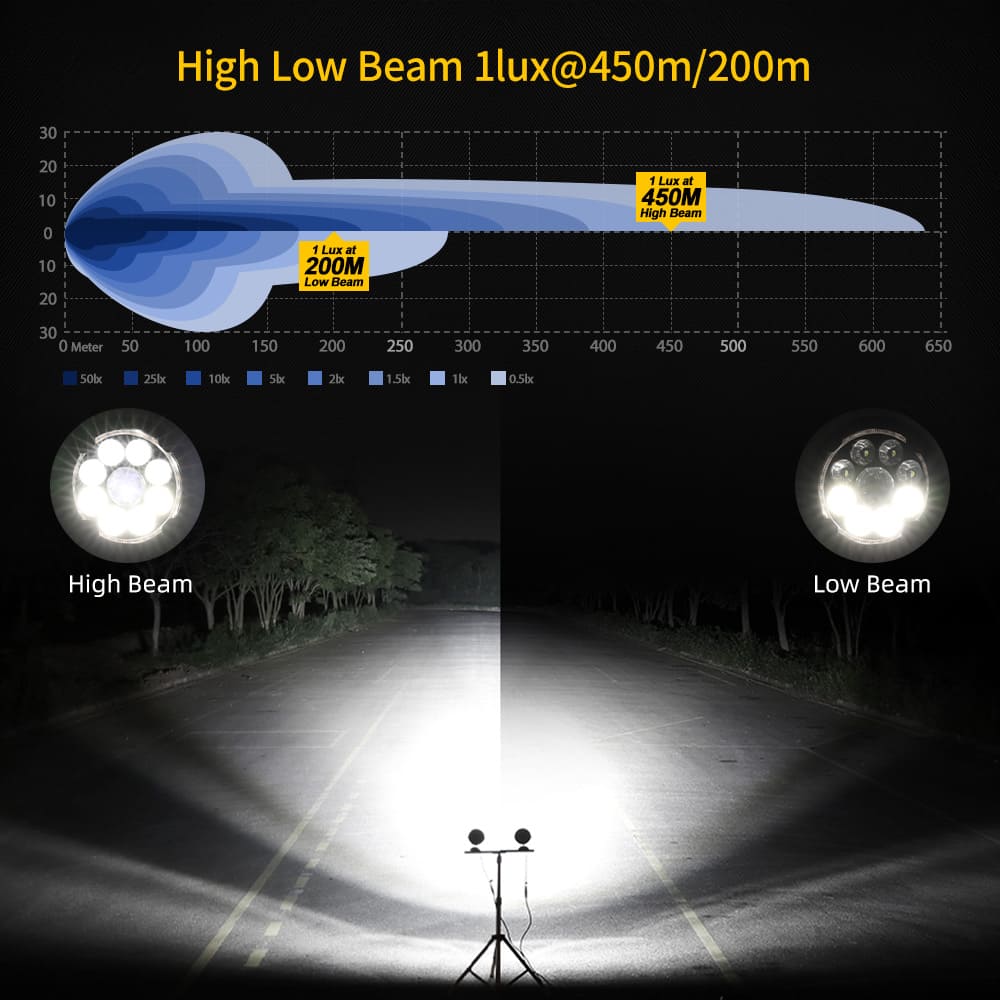

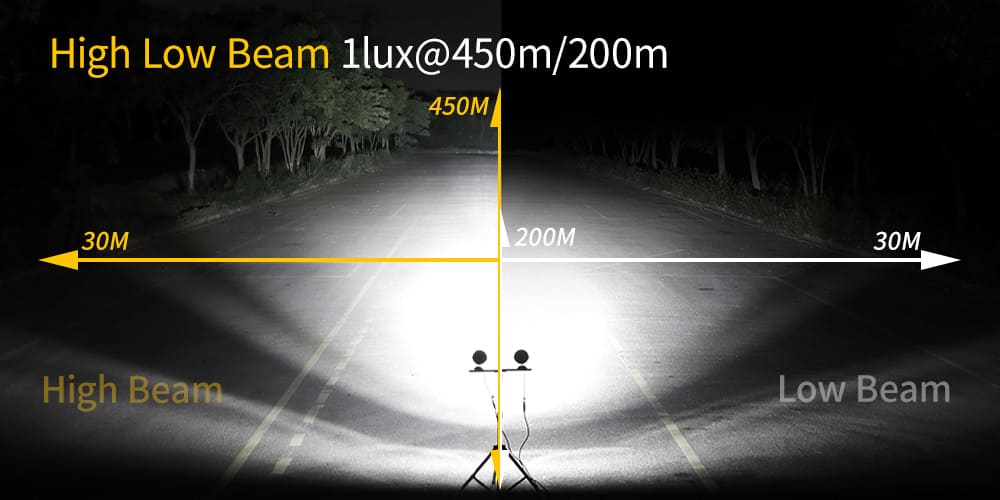

Real-World Distance & Brightness

• Low Beam: 1 Lux @ 200m

• High Beam: 1 Lux @ 450m

15,330LM total output for clear near-field and long-range visibility



11

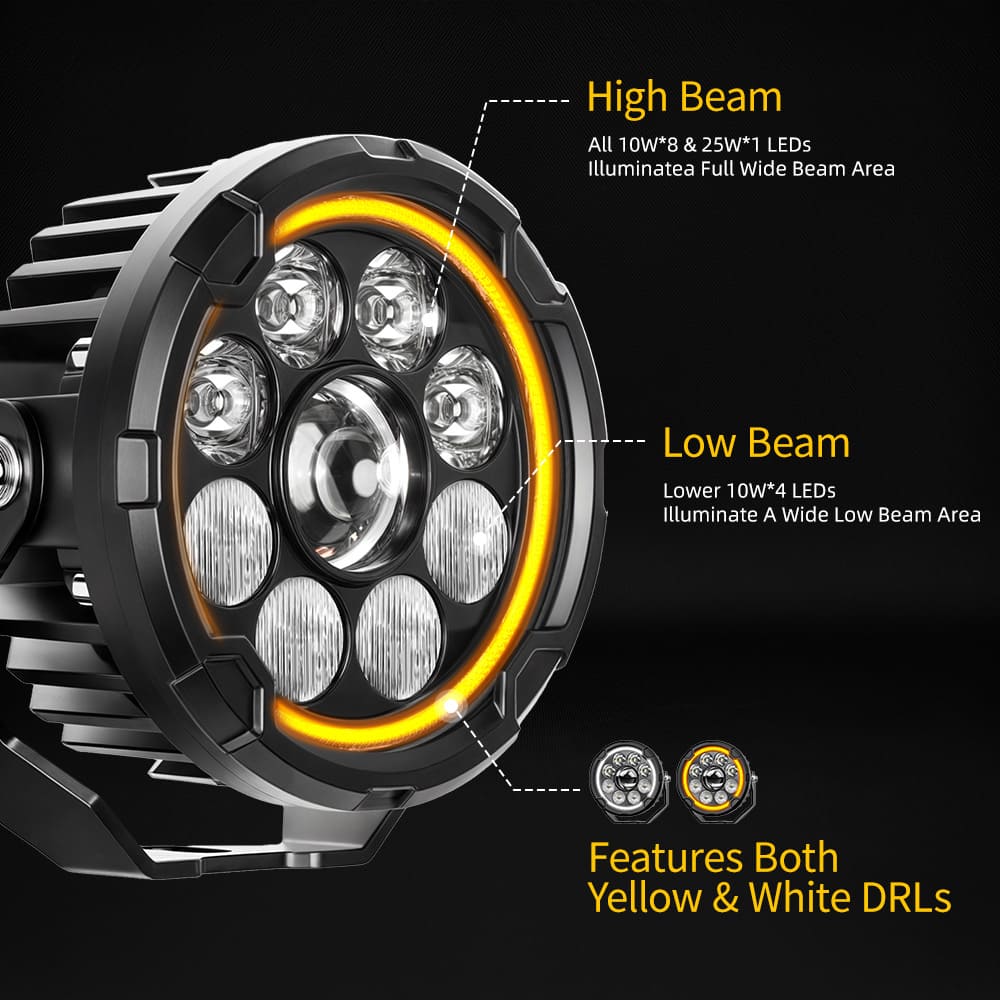

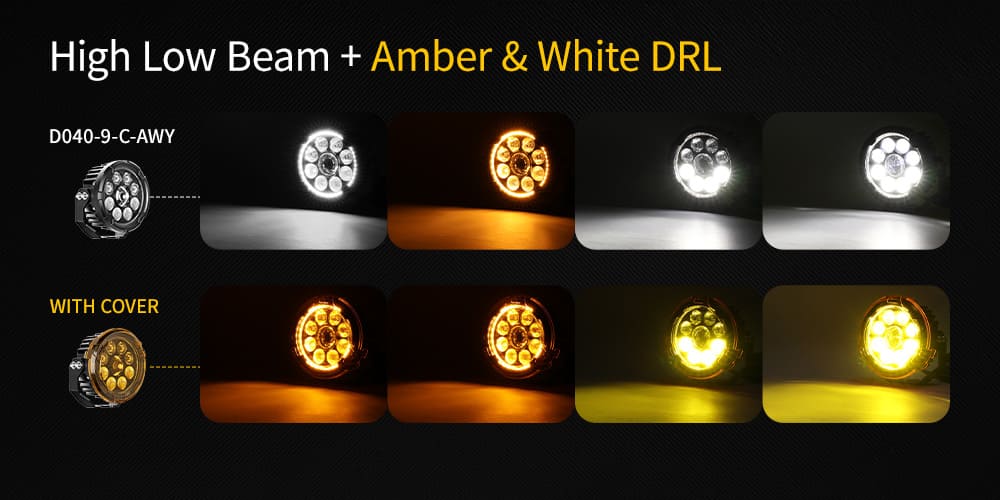

Four Lighting Modes

• Amber DRL

• White DRL

• Low Beam

• High Beam

 Optional yellow lens cover for a full yellow beam when needed



12

13

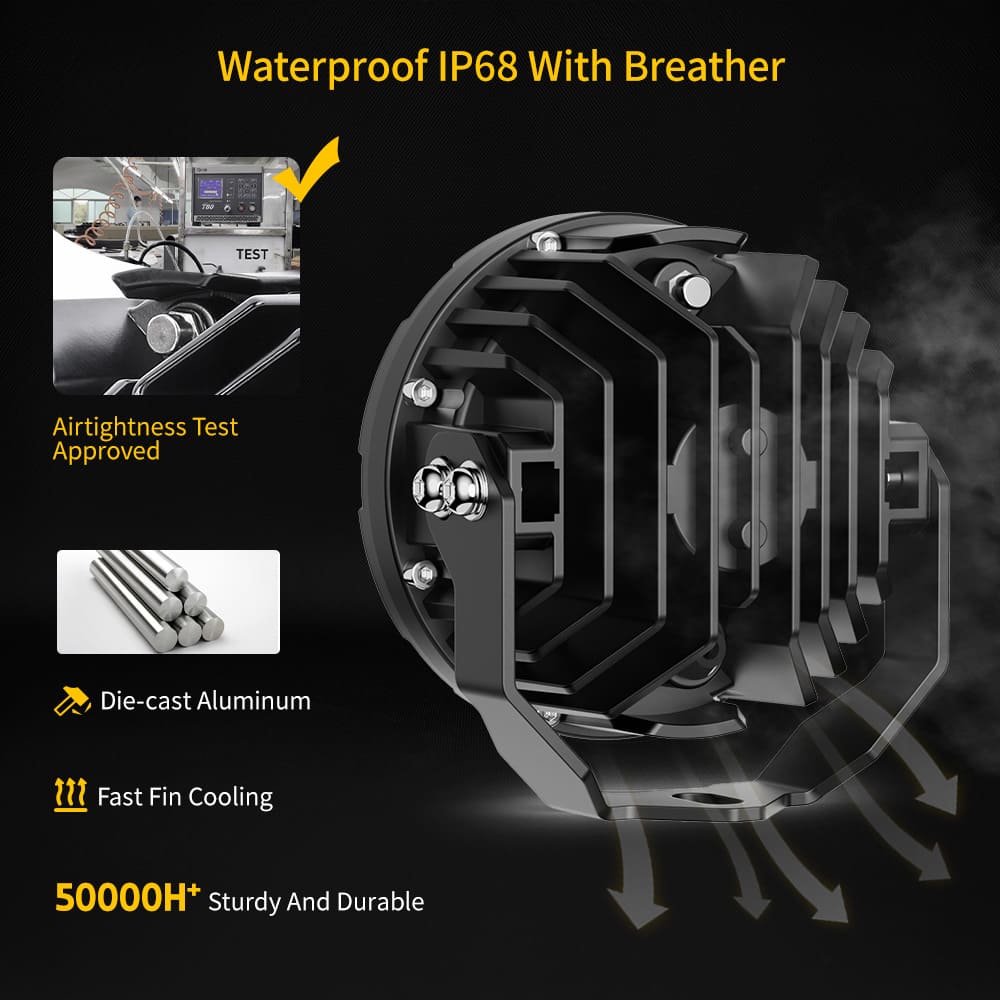

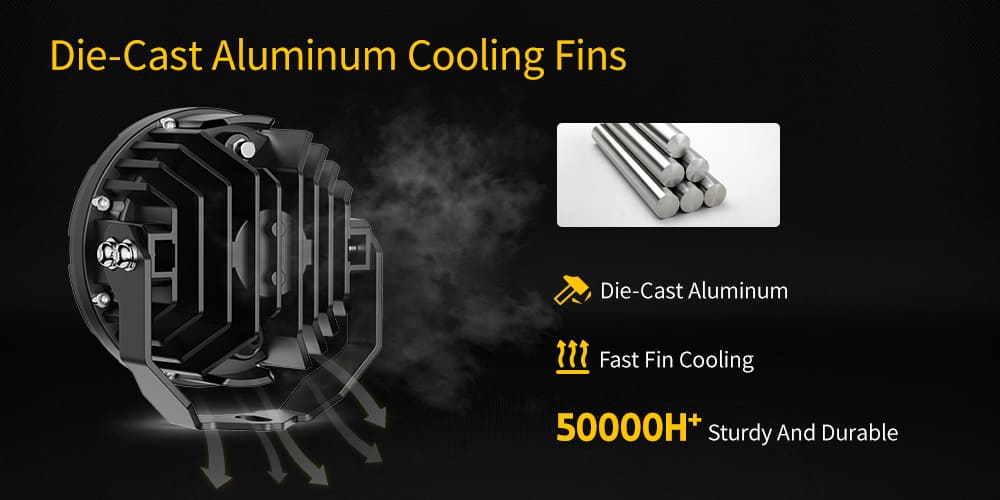

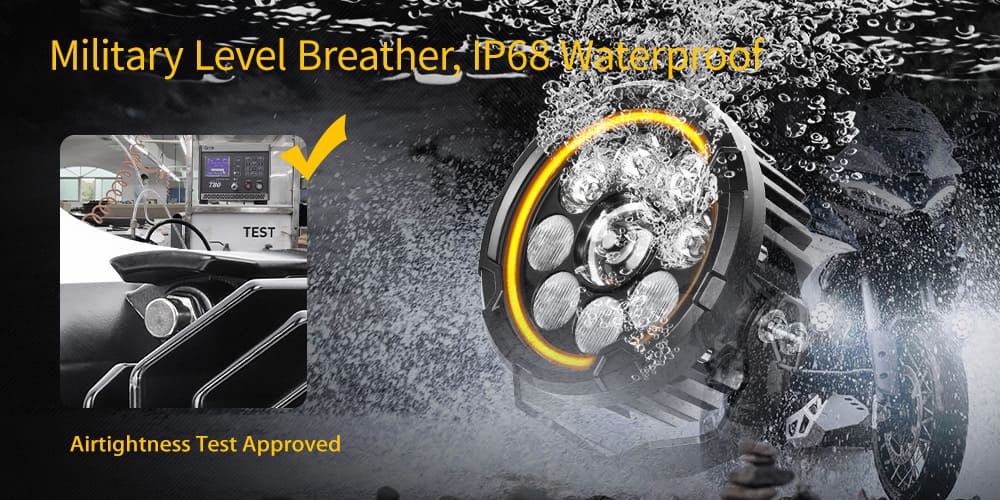

Thermal Management & Durability

• Efficient heat dissipation ensures stable performance

IP68 waterproof rating suitable for all-weather riding



15

16

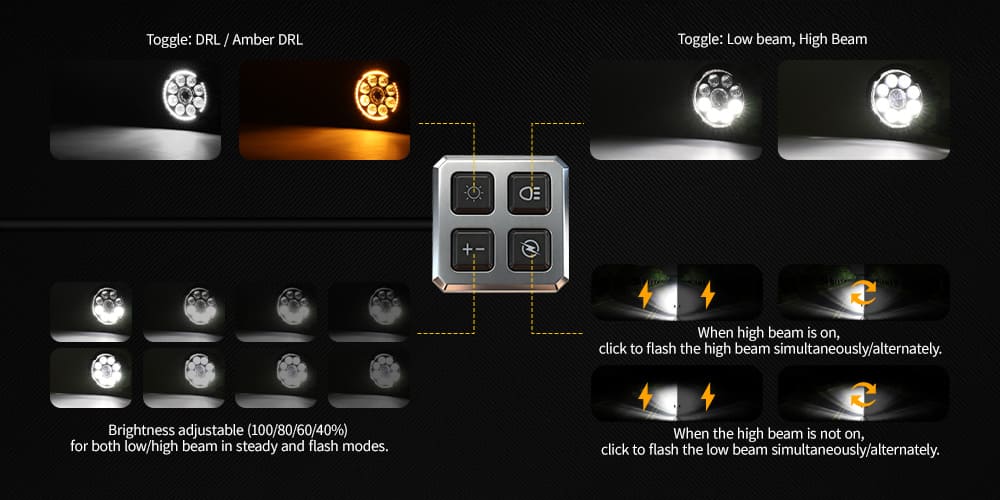

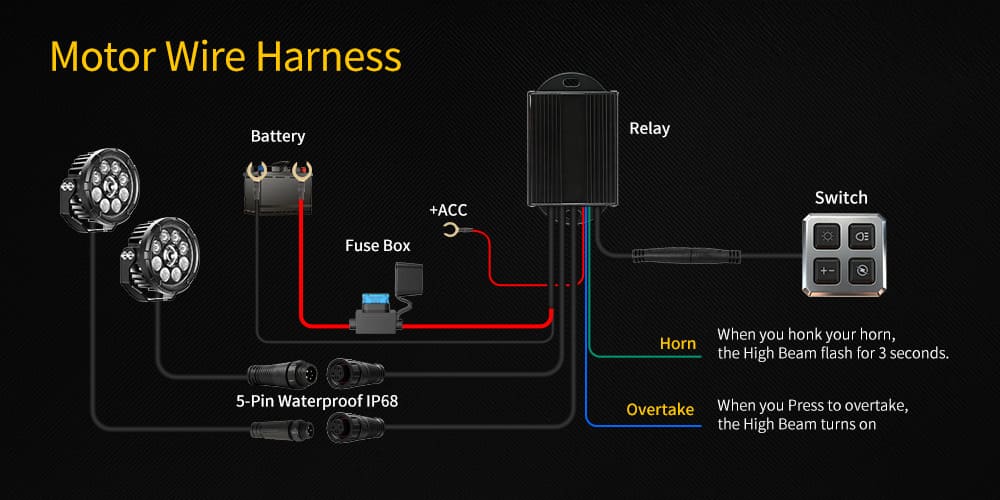

Advanced 4-Key Wiring Harness

Function 1: DRL color control (switch between amber & white)

Function 2: Switch between high beam & low beam

Function 3: Adjust brightness — 100% / 80% / 60% / 40%

Function 4: High/Low Beam strobe modes — alternate strobe or simultaneous strobe

ACC-compatible waterproof harness for secure installation



17

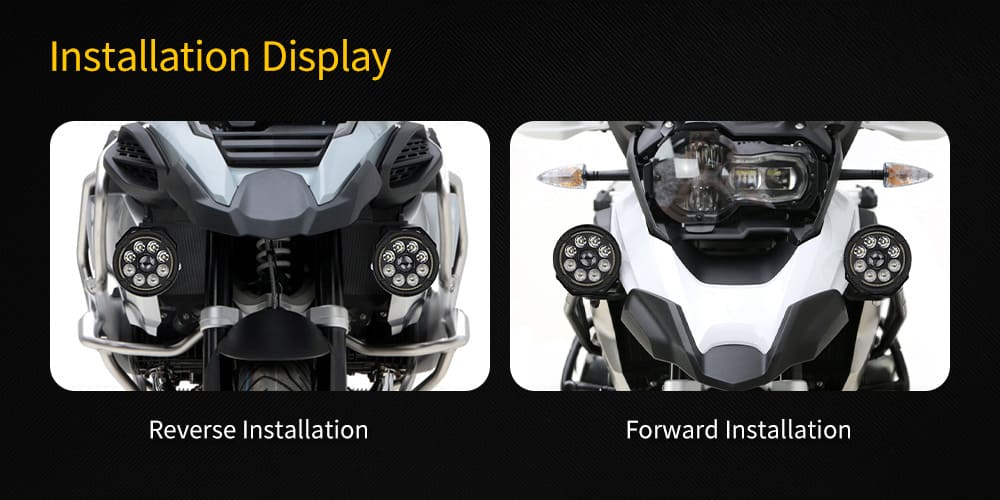

Dual Installation Options

• Reverse Installation

• Forward Installation

Allows flexibility depending on motorcycle type and desired lighting angle


20
