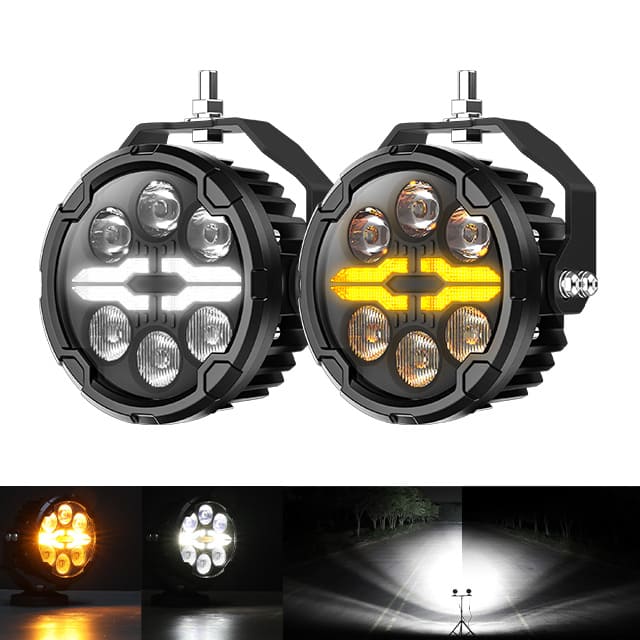

4.5 Inch Motorcycle LED Spotlights with X-Shaped DRL

Share to:
sharethis sharing button

Model Number:D040-9-C-AWY/6-DRL

Size: 4.5 inch

Power: 110W /pair

Beam: High/ Low Beam

DRL: White + Amber DRL

Dimmable: Dimmable Wire Harness Switch

Color Temperature: 6000K

Operating Voltage: 9-32V DC

Waterproof rate: IP 68

Lifespan: 50000hours

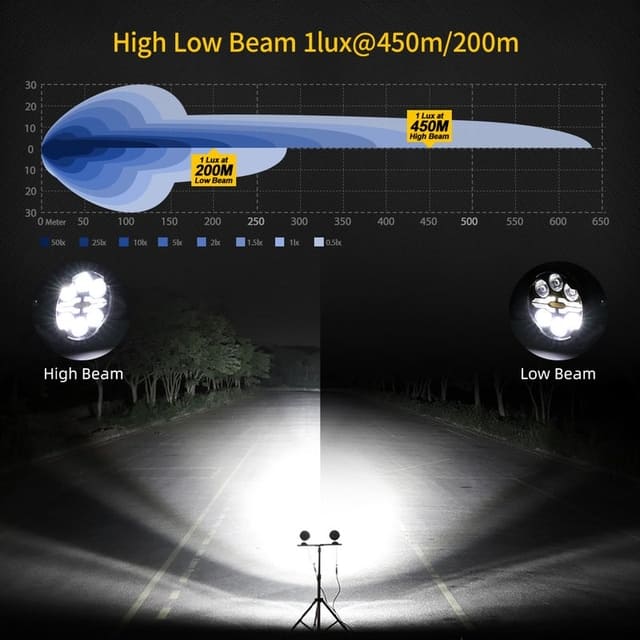

High Low Beam 1lux@450m/200m

Availability:

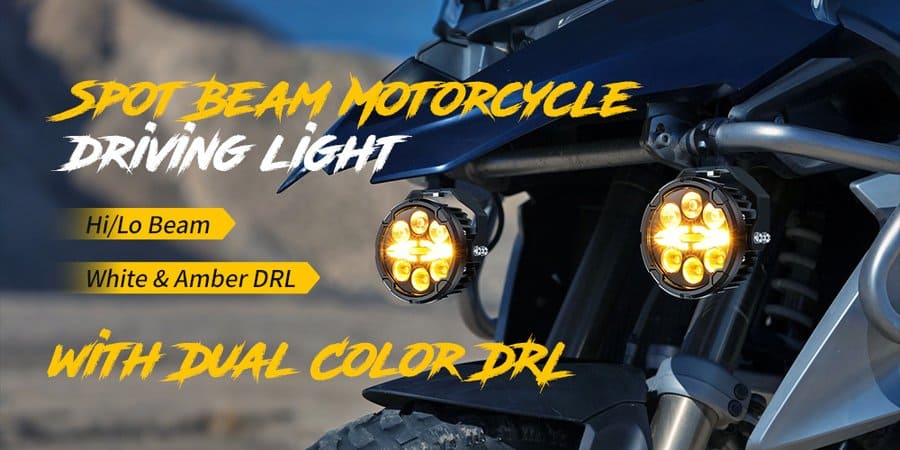

adventure-motorcycle-driving-lights-dual-color-drl

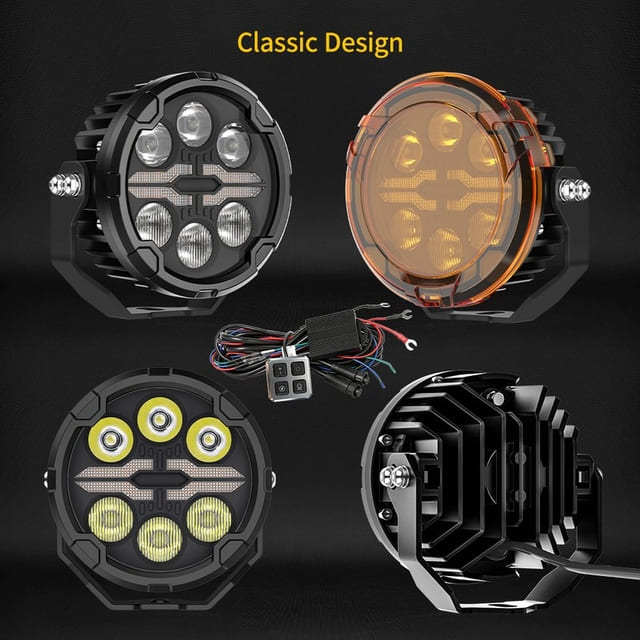

Meet the New D040 Series

A fresh addition to the family. This 4.5-inch auxiliary light features an aggressive X-shaped DRL with switchable white and amber—designed to turn heads while keeping you visible on the road.

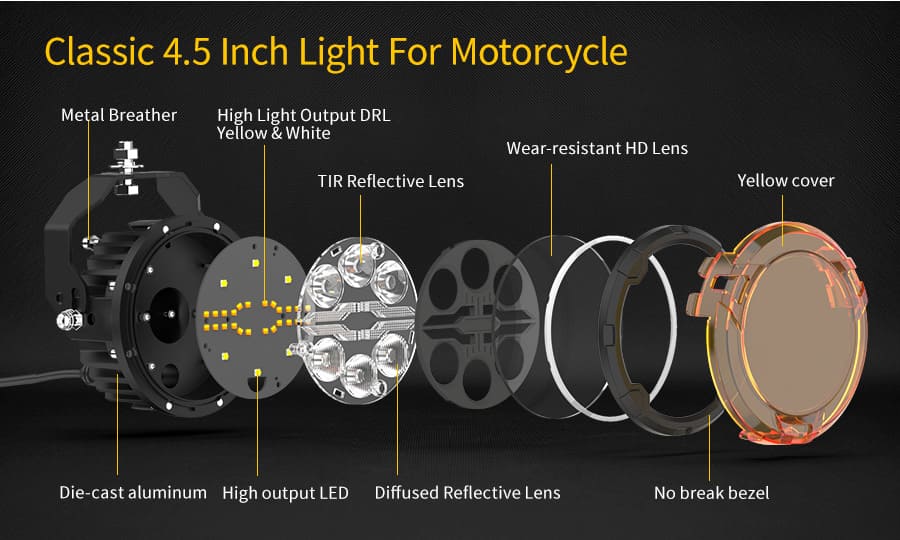

4.5-inch-motorcycle-led-spotlight-exploded-view

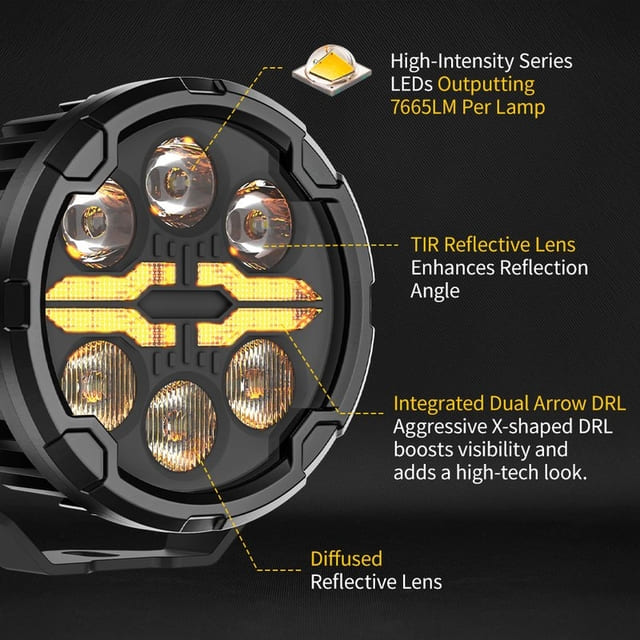

110W Raw Power

Each pair delivers 110W of output, with 7665 lumens per lamp. High beam reaches 450 meters (1 lux), low beam covers 200 meters. More light means more confidence after dark.

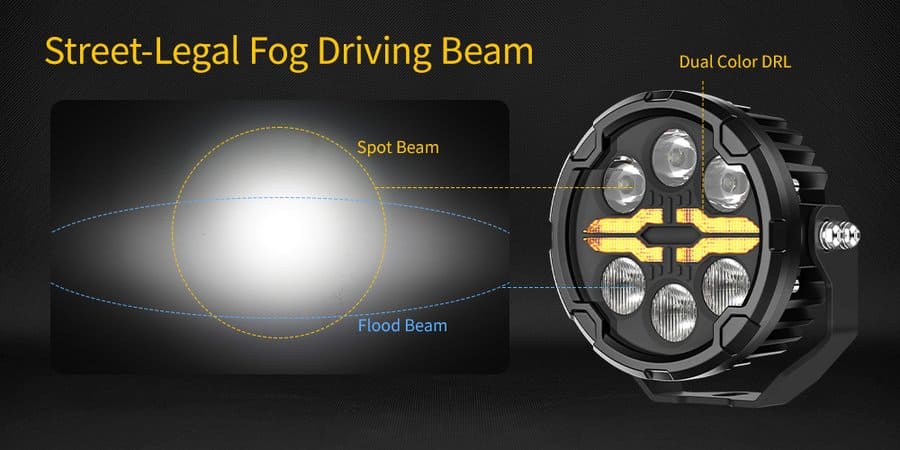

street-legal-motorcycle-fog-lights-spot-flood-beam.

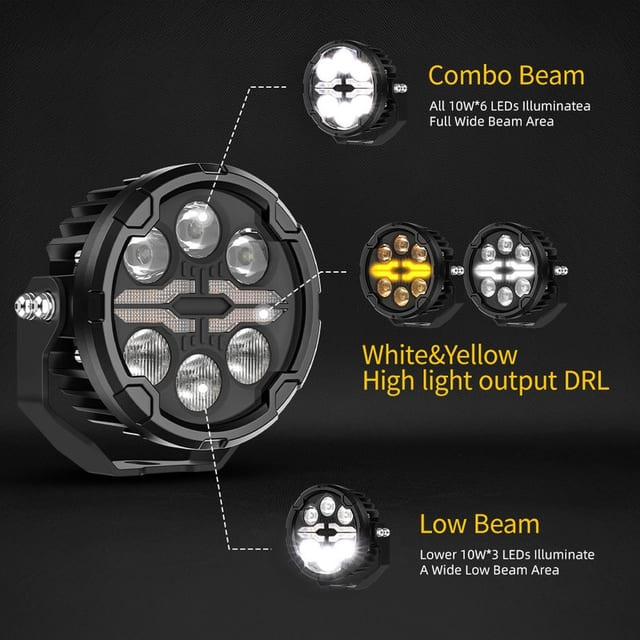

Spot + Flood Combo Beam

Upper TIR spot lens throws light deep down the road. Lower wide flood reflector covers the sides and close range. You get both distance and peripheral vision in one compact housing.

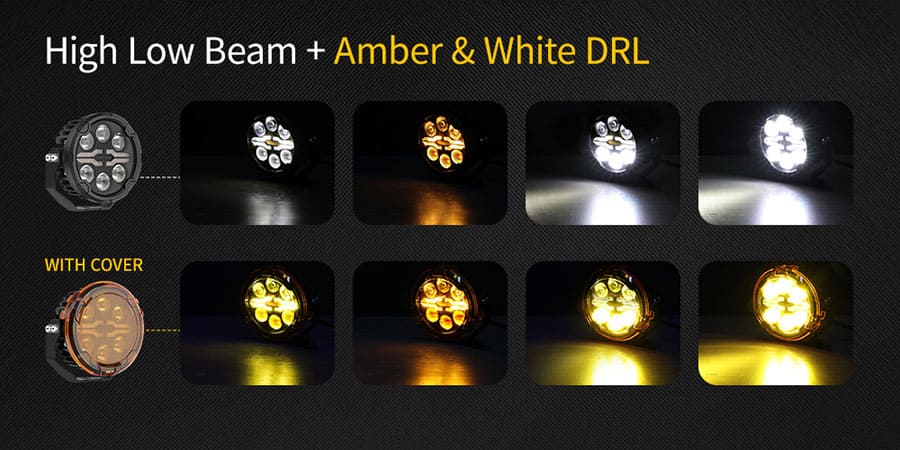

led-motorcycle-pod-lights-high-low-beam-modes

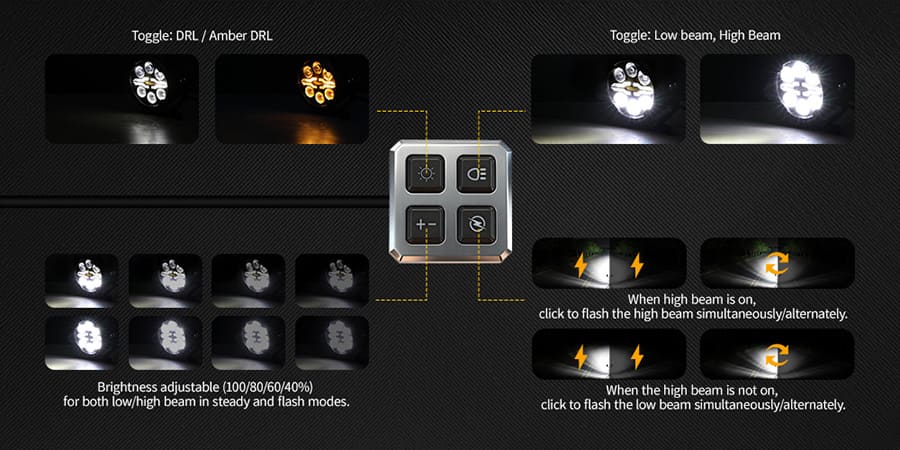

smart-motorcycle-light-switch-brightness-adjustable


Multi-Mode & Dimmable Control

Toggle through white DRL, amber DRL, low beam, and high beam. Adjust brightness from 40% to 100%. When high beam is on, choose simultaneous or alternate flashing—full control at your thumb.



military-grade-waterproof-motorcycle-light-ip68

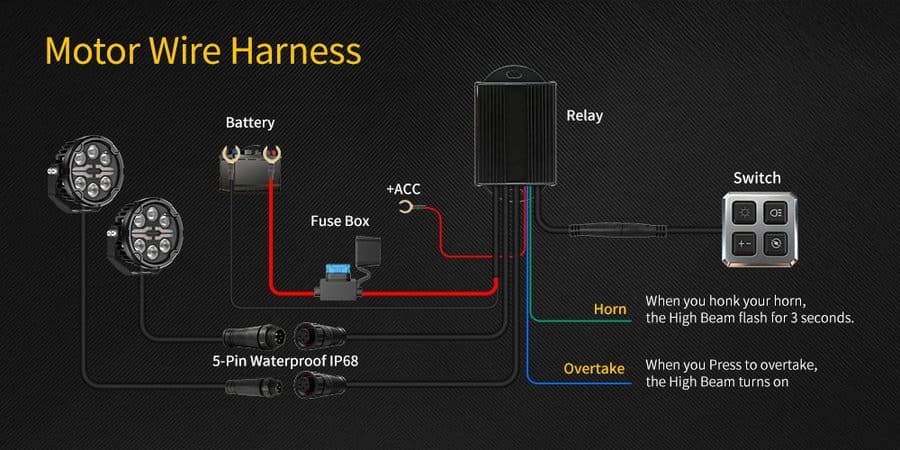

motorcycle-light-wiring-harness-relay-switch-diagram

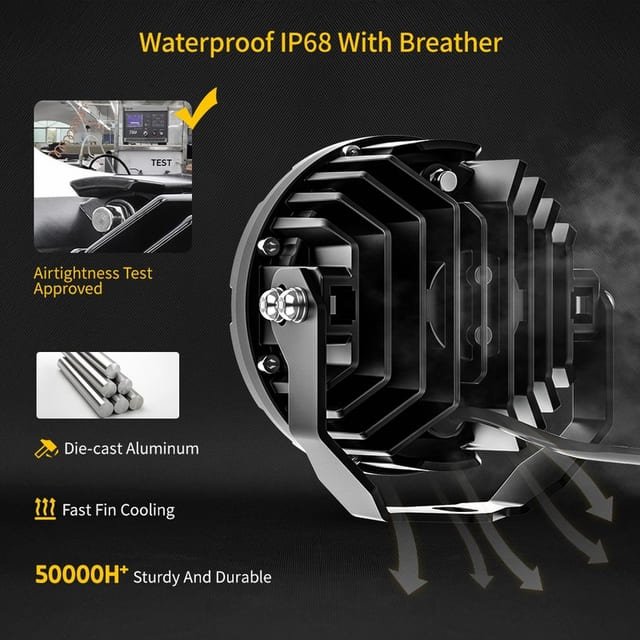

IP68 & Plug-and-Play Harness

Fully sealed against water and dust. The complete 5-pin wiring kit includes relay and fuse box—just connect and ride, no complicated splicing.

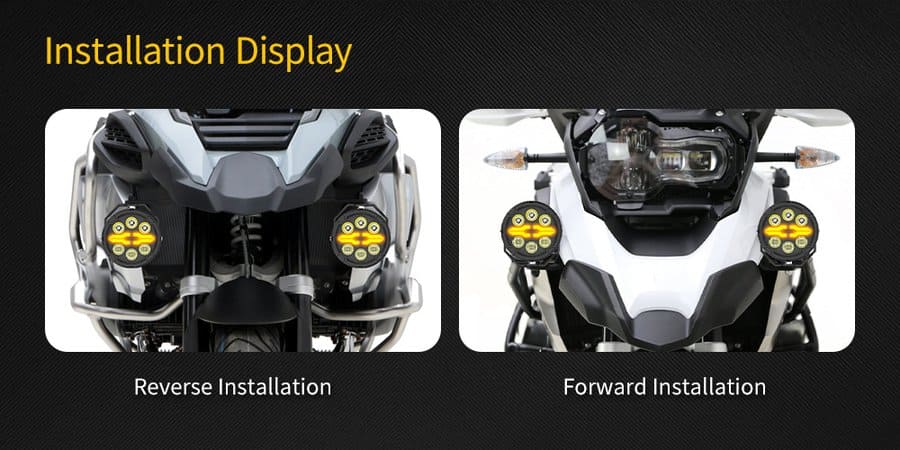

motorcycle-auxiliary-lights-forward-reverse-installation


Mount It Your Way

Forward or reverse installation. Compact 4.5-inch size fits crash bars, fork mounts, fairings, and under-headlight positions. The bracket locks in securely at any angle.Wide 9-32V DC compatibility works on everything from scooters to heavy cruisers

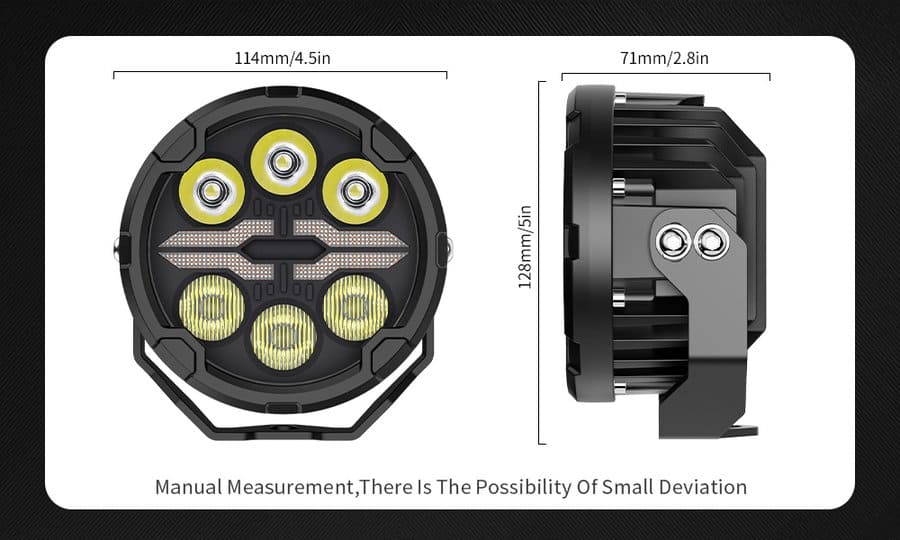

4.5-inch-motorcycle-spotlight-dimensions-size

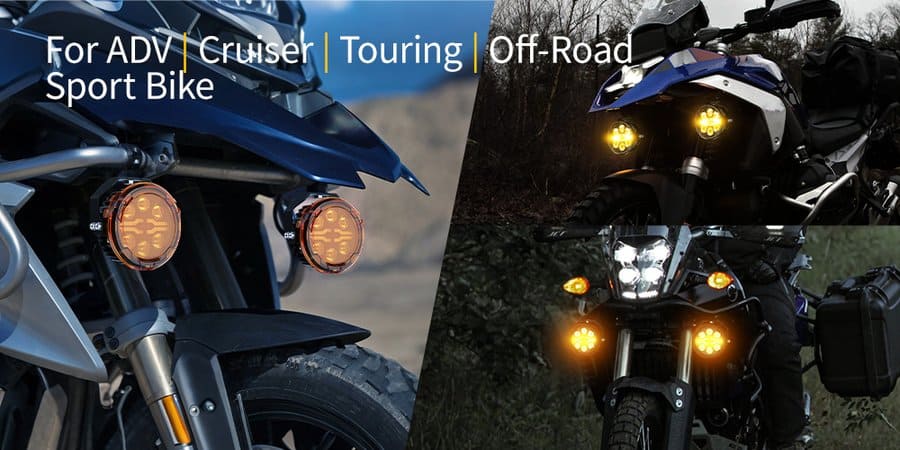

universal-motorcycle-lights-for-cruiser-sport-bike-adv.
