Linkable LED Light Bar with Dual-Color Dynamic DRL

Share to:
sharethis sharing button
Model Number: 96-954Z-PRO

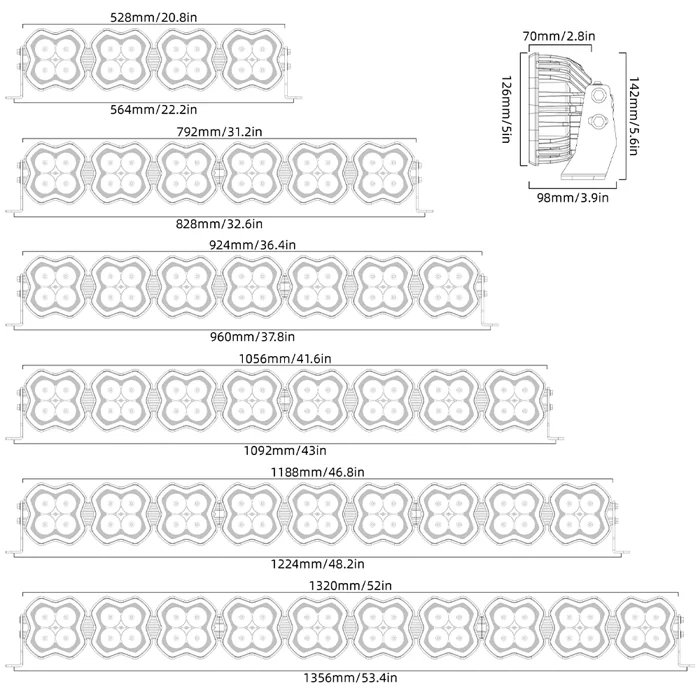

Size: 21-52inch
Chip: Luminus*4
Raw Lumens: 17600LM Pair
Operating Voltage: 12-24V DC
DRL: 14 Modes Dynamic White&Amber DRL
Voltage: 24 V
Shooting: 1580M
Color Temperature: 6000K
Beam: Combo Spot Driving Beam
Waterproof rate: IP68 & IP69K
Housing Material: ADC12 Die-cast Aluminum
Cover: Black / Yellow Cover
Availability:
1

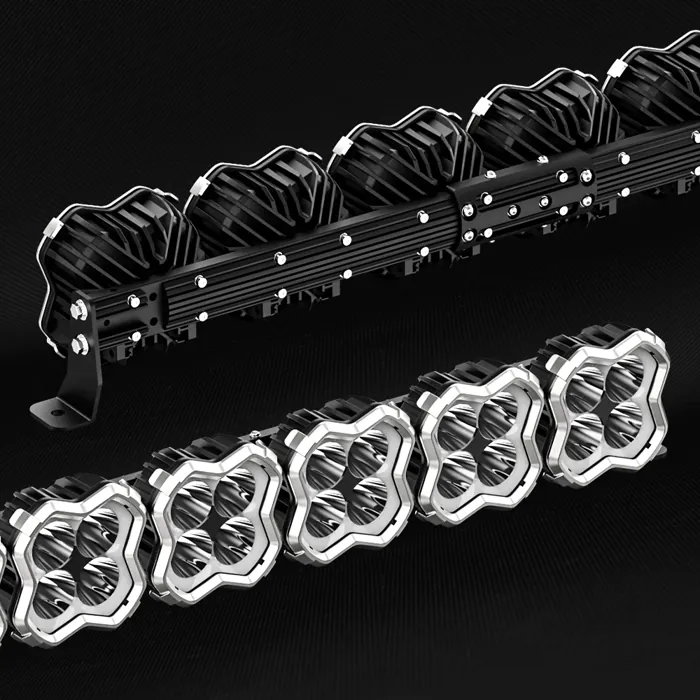

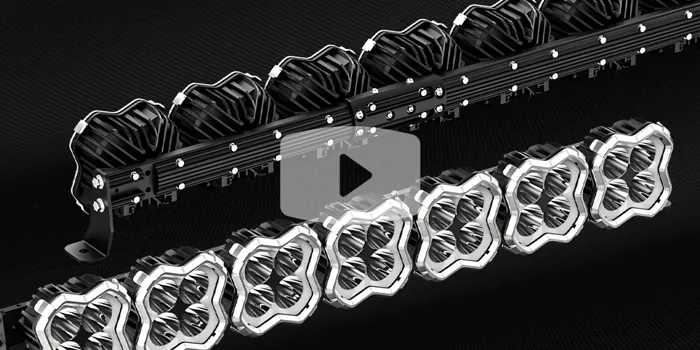

Linkable LED Light Bar with Dual-Color Dynamic DRL

●  Interlocking Joint System

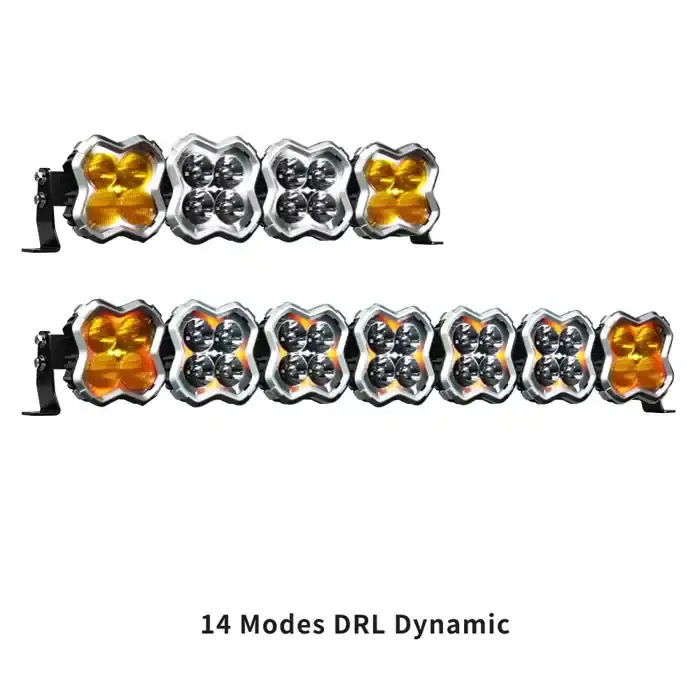

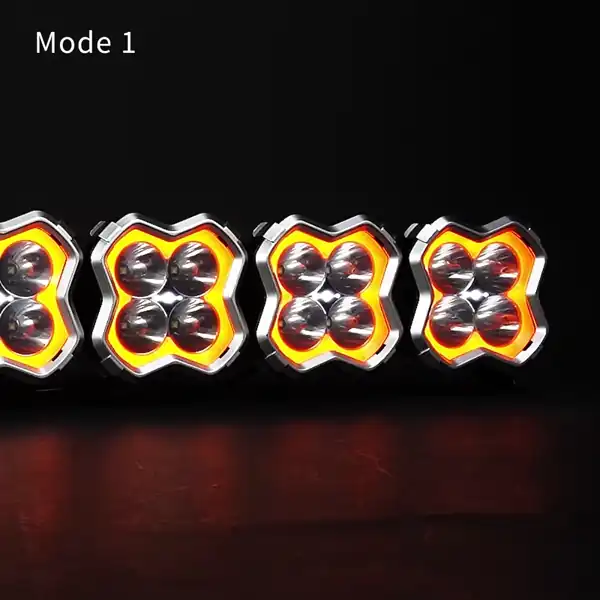

●  14 Dynamic DRL Modes

●  Custom Linkable Configurations

2

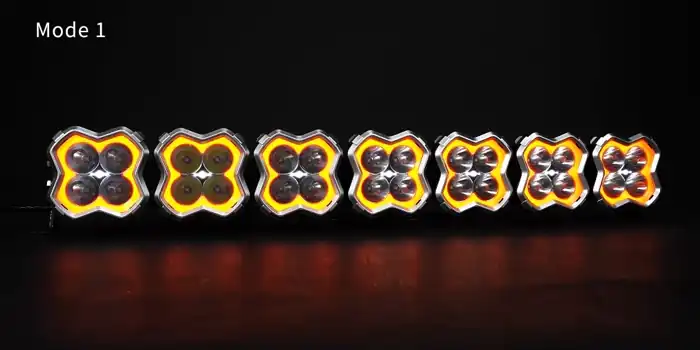

7-Mode Amber DRL

Features 7 selectable light patterns with deep amber output to cut through fog, dust, and bad weather while giving your rig an aggressive off-road look.

3

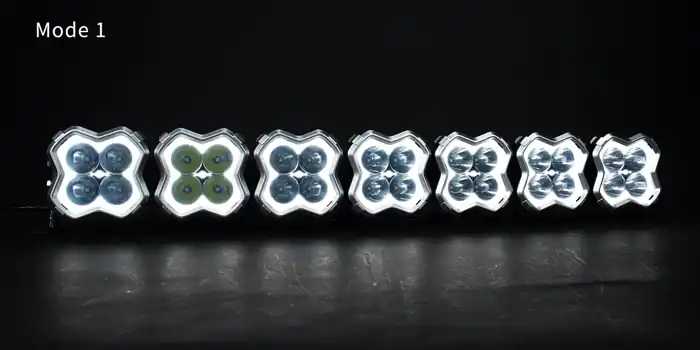

 7-Mode White Position Light

Delivers 7 distinct illumination modes in clean white light to clearly mark your vehicle's position and highlight its front-end profile day or night.

4-1

High-Output Spot Beam

Projects an intense, highly focused white light reaching up to 1,580 meters (1lux@1580m) to ensure long-distance visibility on dark trails.

4-2

High-Visibility Amber DRL

Emits a distinct amber glow that clearly defines your vehicle's outline in dark or dusty environments without overpowering oncoming vision.

5

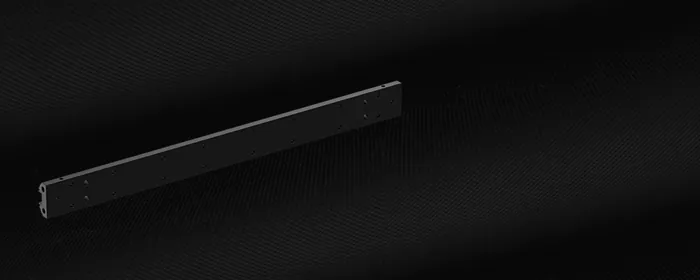

5-2

Mortise-and-Tenon Fit

Precision-milled locking tabs slot directly into recessed housing channels, creating a seamless interlocked fit that eliminates shifting between modules.

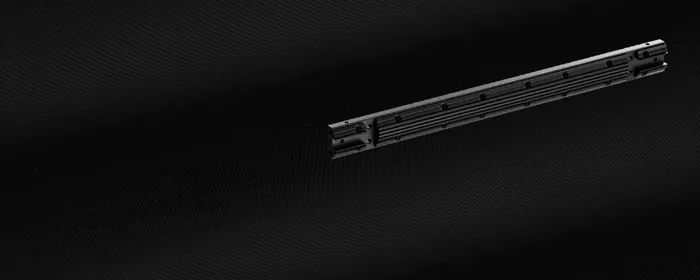

5-3

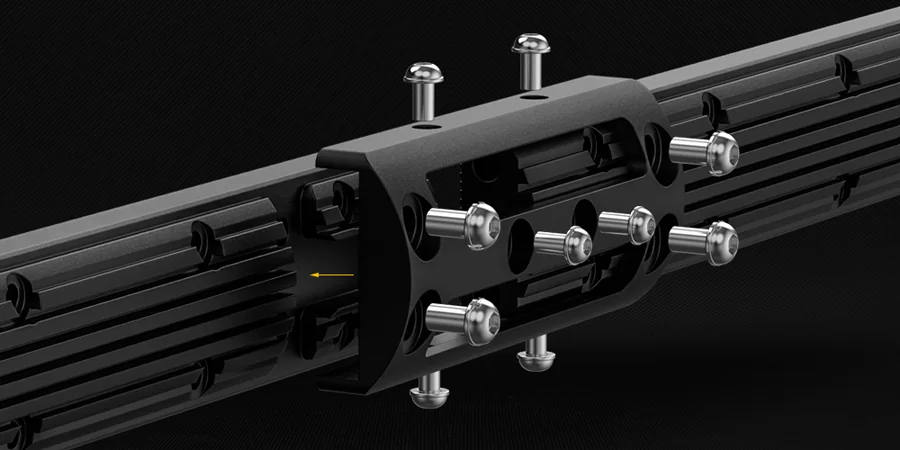

Interlocking Connector

The outer interlocked clamp secures directly over the joint, distributing load forces evenly to prevent bolt shear and structural breakage during extreme off-road use.

Thick-Walled Aluminum Spine

Extruded from high-grade aluminum with extra wall thickness, the rear rail delivers heavy-duty rigidity to support long multi-pod setups without bending or sagging.

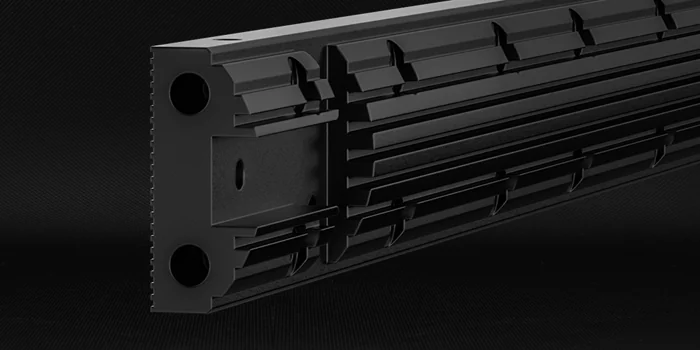

6-1
7-1

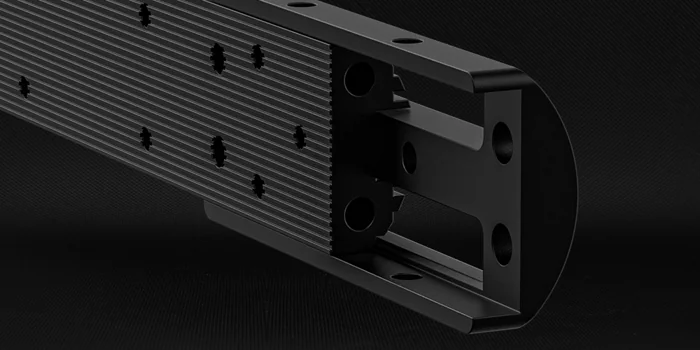

Reinforced Sleeve Housing

Built with a fully enclosed sleeve design, the heavy-duty connector shields joint hardware from trail debris and impact while providing maximum torsional strength.

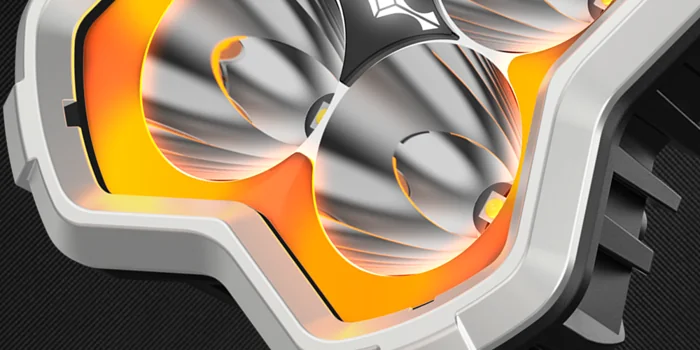

8-1

76W / 17,600LM High Output

Powered by 4 high-output LED chips delivering 76W and 17,600 lumens per pod, paired with 99% reflective optics for maximum beam distance and clarity.

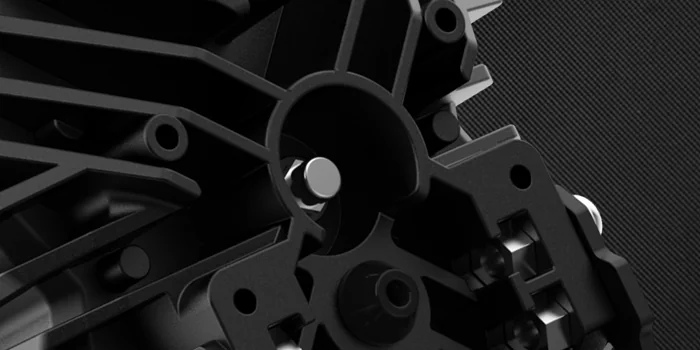

8-2

Military-Grade Breather

Features a built-in metal breathing valve that equalizes internal air pressure and expels moisture, preventing condensation and fogging inside the lens.

8-3

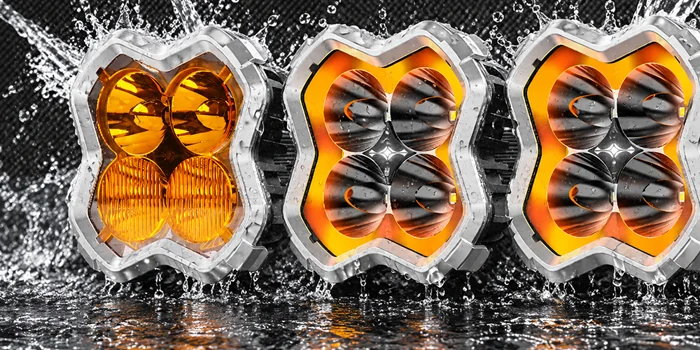

IP68 & IP69K Waterproof

Sealed against extreme moisture, heavy rain, and high-pressure washdowns, ensuring reliable, all-weather performance in harsh off-road environments.

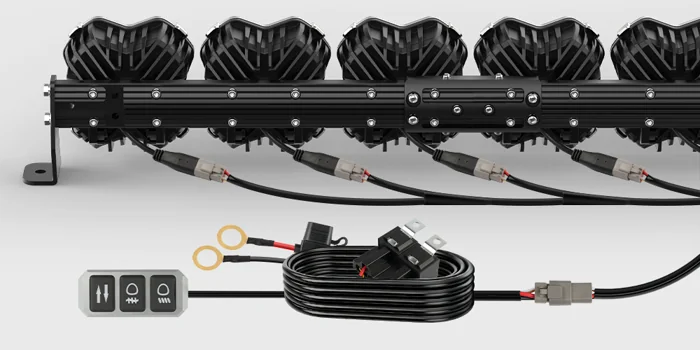

9-1

4-Pin DT Connectors

Equipped with weather-sealed 4-pin DT connectors and a heavy-duty wiring system for secure, low-resistance power delivery in extreme operating conditions (10-32V DC).

9-2

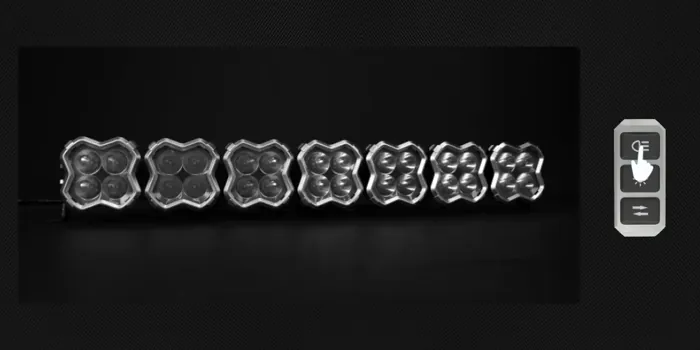

Smart Memory & Mode Recall

3-switch harness grants complete control over all 14 dynamic amber/white DRL patterns, automatically recalling your last used light setting upon every vehicle start.

Vehicle Applications

10-1

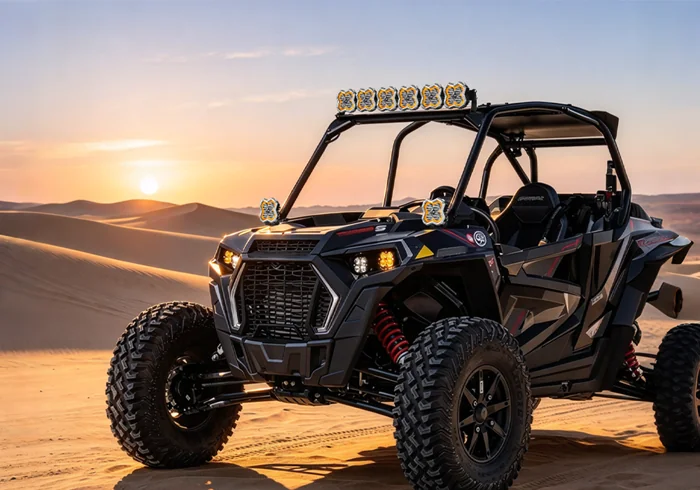

UTV & Side-by-Side

10-2

Off-Road SUVs & Jeeps

10-3

4x4 Trucks & Pickups

10-4

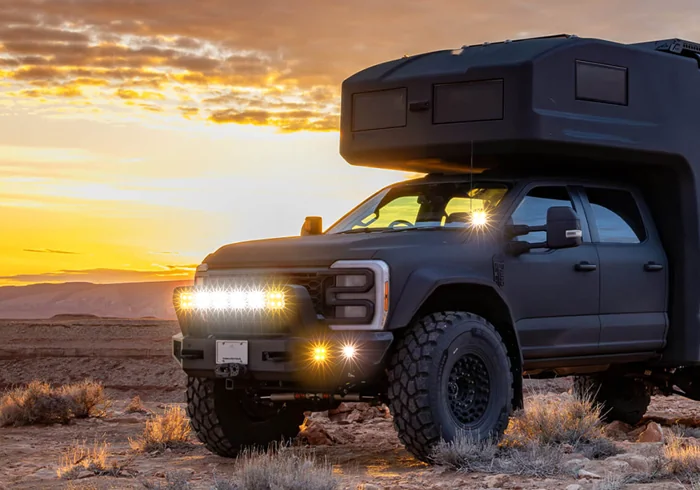

Overland & Campers
