Ultra-Thin Dual-Color Dynamic DRL LED Light Bar

Share to:
sharethis sharing button
Model: 9610G-PRO-TJ
Chip: P8 LEDs + Dual-color LEDs
Illumination distance: 1 LUX @ 530M (32 inch)
Working Watt: 90W (32 inch)
Lumen: 9000lm (32 inch)
Voltage: 12-32V DC
Color Temperature: 6500K
DRL: Dynamic White DRL+Amber Position Light
Beam Pattern: Spot Driving Beam
Body Color: Black
Material: Thicker ADC12 Die-cast Aluminum Alloy
Waterproof rate: IP68 & IP69K
Lens material: High-transmittance PC Cover
Mounting Bracket: Adjustable Stainless Steel Brackets
Life time: 50,000+ hours
Availability:
1_batch

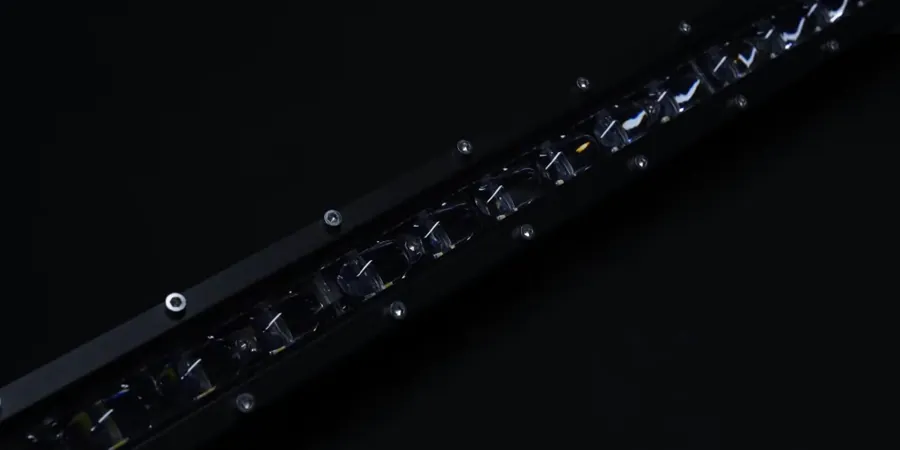

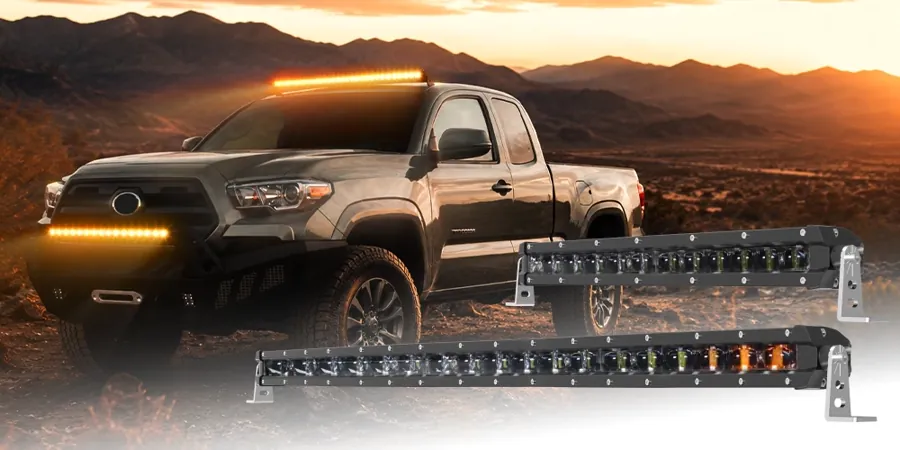

Ultra-Thin Dual-Color Dynamic DRL LED Light Bar

●  Multi-Mode Dynamic DRL

●  Ultra-Slim Design

●  P8 LEDs & 6D Projector Optics

2_batch

Title White Start-Up

Initiates a clean white light sweep upon engine startup, providing visible vehicle outline marking before shifting into solid DRL mode. Designed to improve daylight visibility and give the vehicle front end a distinct signature.

Amber Warning

High-intensity amber illumination cuts through dust, fog, and rain. Dedicated strobe patterns provide clear warning signaling for trail navigation, vehicle recovery, and roadside stops.

3_batch

4-1_batch

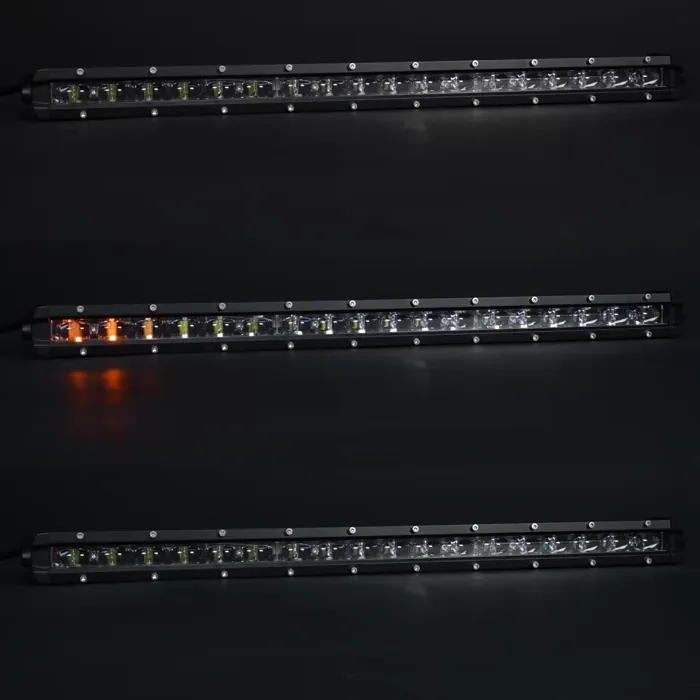

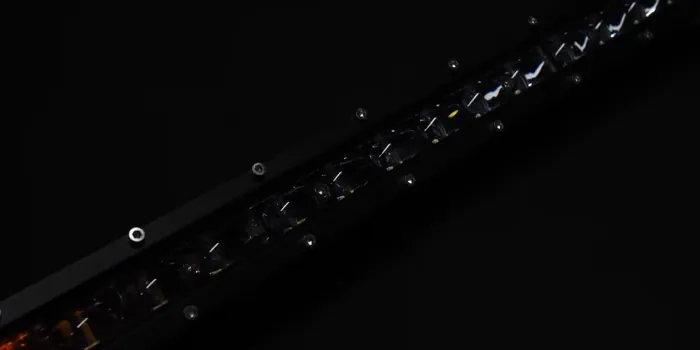

3-Mode Dual-Color Chasing

 Integrates 3 dynamic flowing sequences with alternating white and amber LEDs to enhance visual warning effects in convoy setups.

4-2_batch

Mode Memory

he internal controller automatically saves your last active light setting, restoring your preferred mode instantly on the next power cycle.

5-1
5-2
6

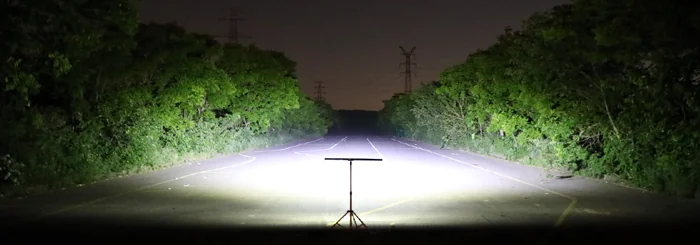

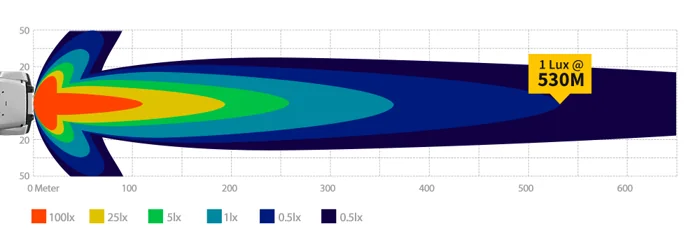

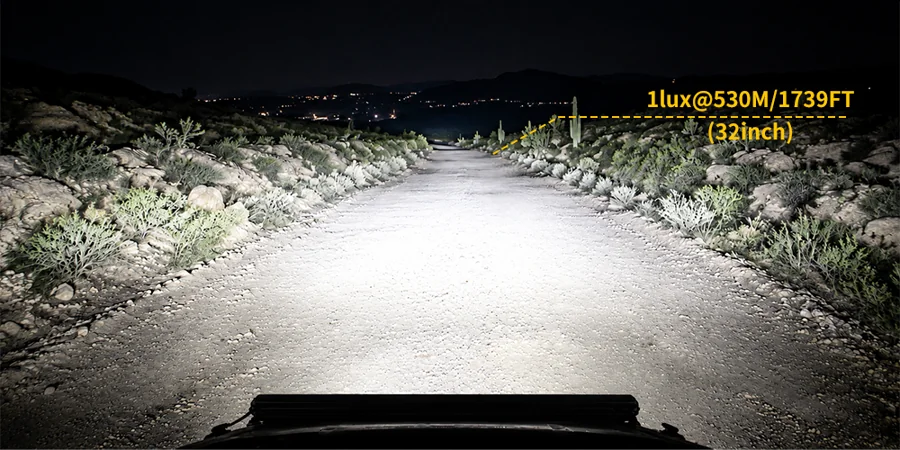

Long-Range Spot Beam

Precision 6D optics project a focused spot beam reaching 1 Lux at 530 meters (1,739 ft) on the 32-inch model, providing long-distance trail coverage with reduced glare.

7-1

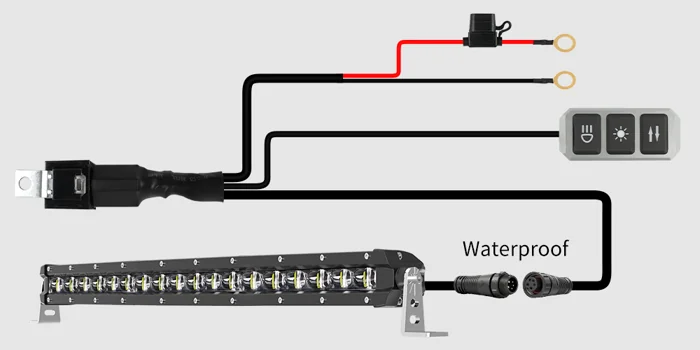

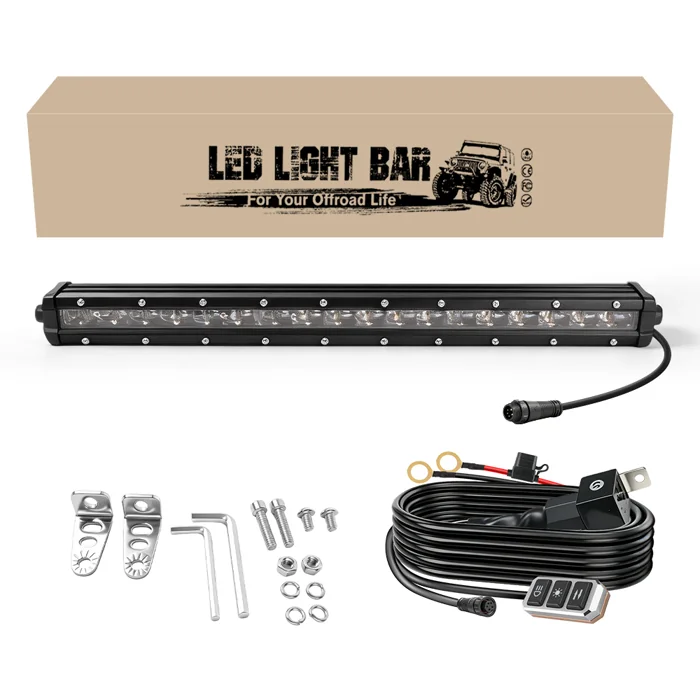

Plug-and-Play Wiring Kit

Heavy-duty wiring harness with waterproof quick-connectors, inline fuse protection, and a pre-wired controller for easy installation.

8-2_batch

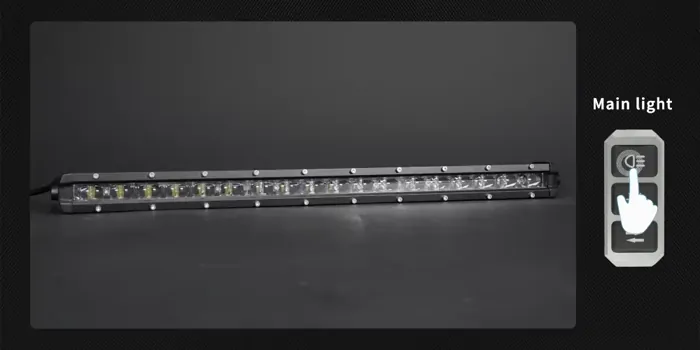

3-Button Control

Switch easily between main lighting, DRL start-up sequence, and dynamic strobe modes using the responsive 3-button switch.

8-1

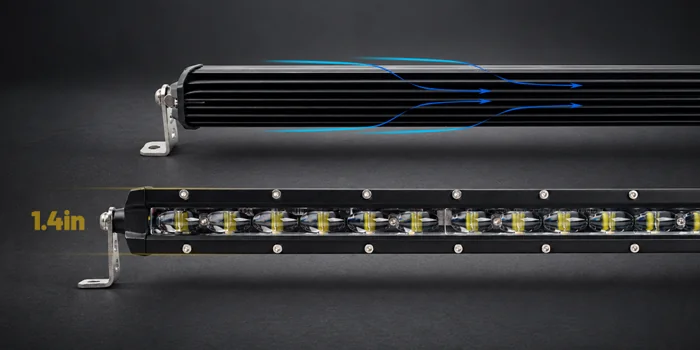

Ultra-Slim Design

With a housing height of just 1.4 inches (36.4mm), the low-profile aluminum body integrates heavy-duty cooling fins to maximize airflow and prevent thermal degradation.

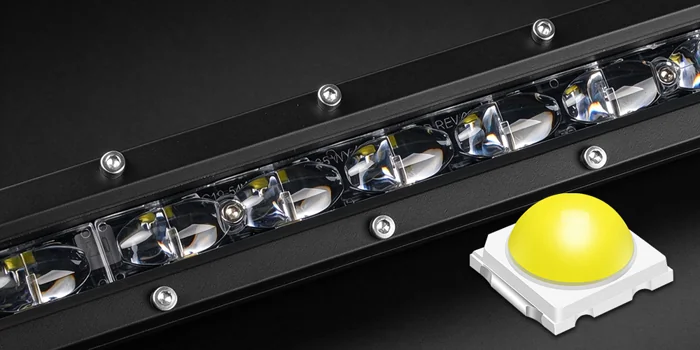

P8 LEDs with 6D Projector Optics

 Equipped with 45 high-efficiency P8 LED chips and 6D projector lenses, the 32-inch model delivers a powerful 90W and 9,000 lumens of focused illumination.

9-1
10-1

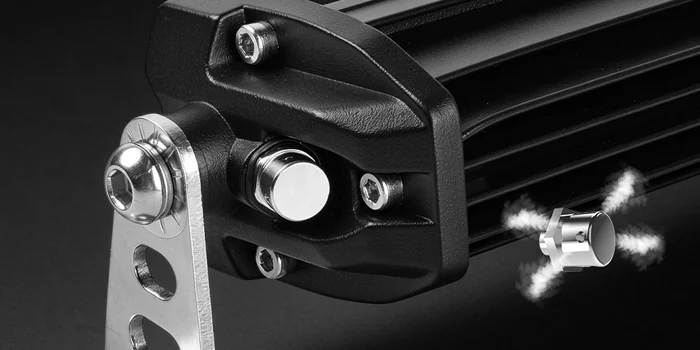

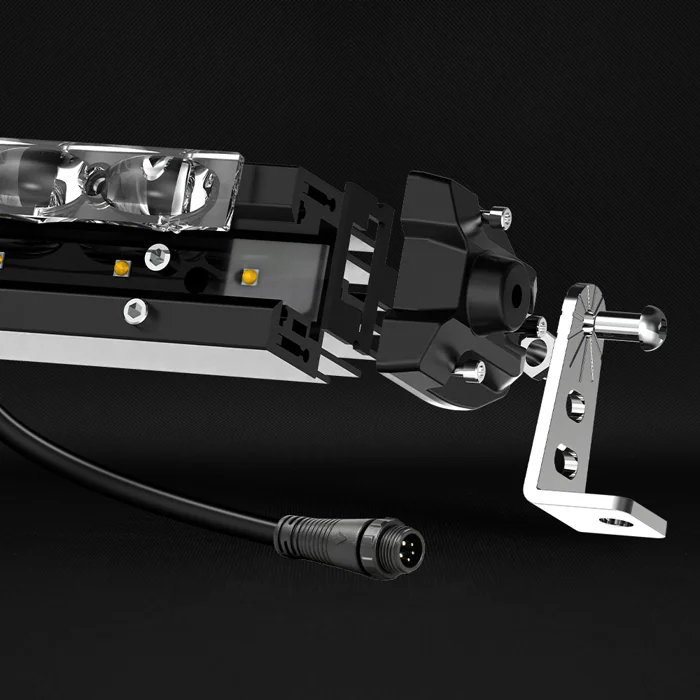

Metal Breather Valve

Equalizes internal air pressure and expels moisture to prevent condensation inside the lens.

10-2

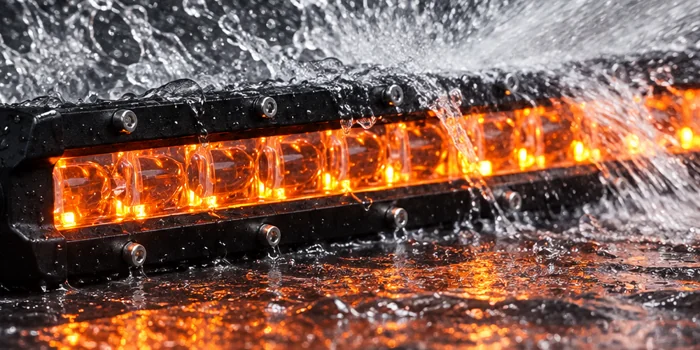

IP68 & IP69K

Completely sealed housing resists high-pressure washdowns and extreme weather conditions.

10-3

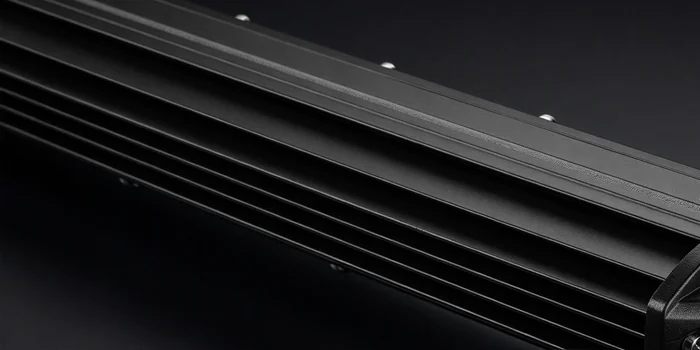

ADC12 Aluminum

Heavy-duty die-cast aluminum shell with integrated fins for efficient thermal management.

10-4

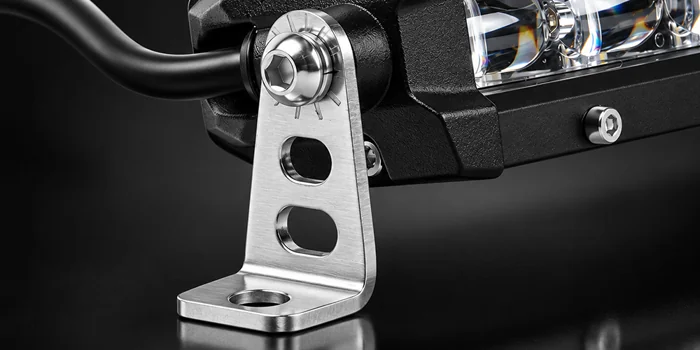

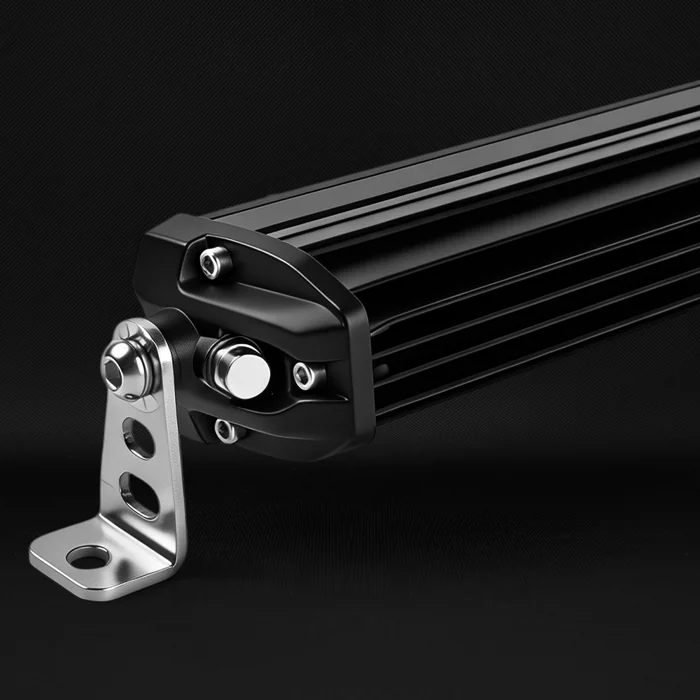

Stainless Steel Bracket

 Corrosion-resistant bracket featuring multi-slot positioning for flexible angle adjustment.

Vehicle Installation

13-1

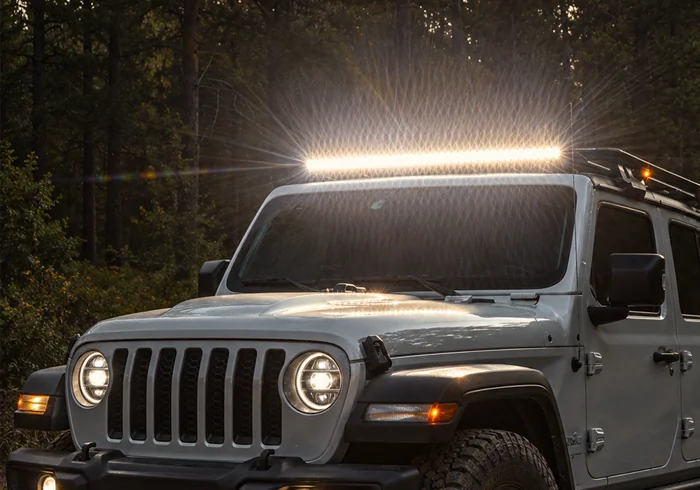

Roof Rack Mounting

13-2

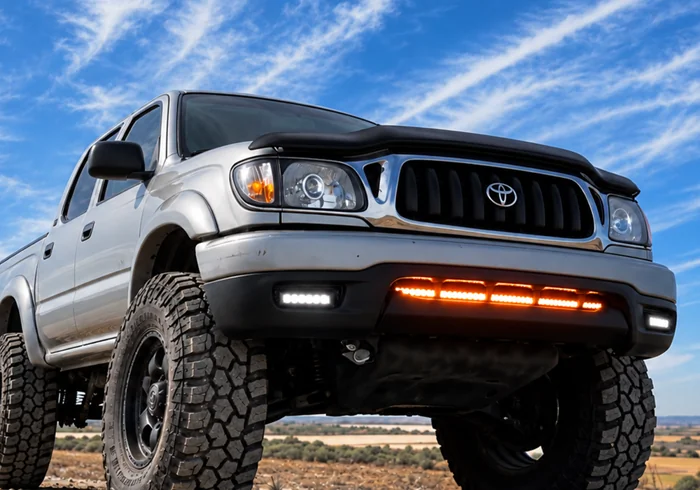

Grille & Bumper

13-3

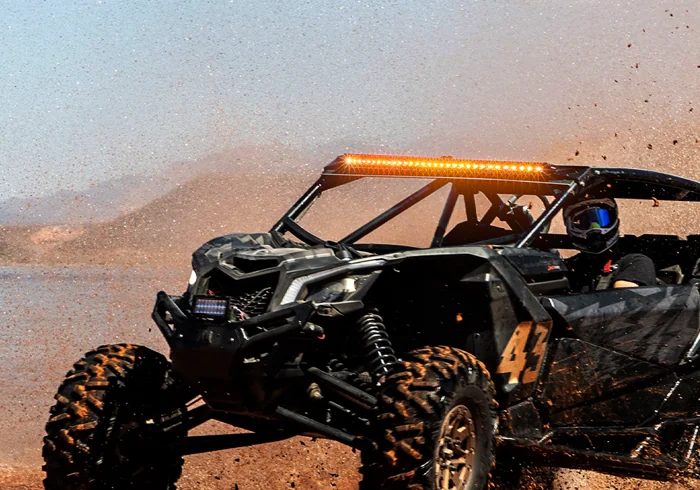

UTV & Side-by-Side
